Pressure-Tested Float Balls for Sealed Systems

A ball float valve uses a buoyant float ball to open, close, or regulate flow as liquid levels change. As the float rises or falls, it actuates the valve mechanism to maintain a target level, prevent overflow, or protect equipment. Stainless steel float balls are often selected when durability, chemical compatibility, and reliable operation are important in sealed or industrial systems.

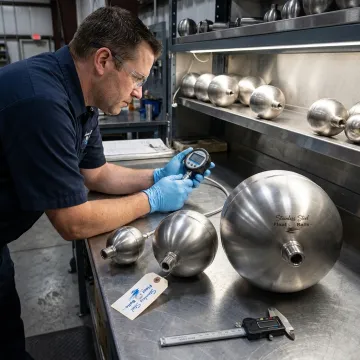

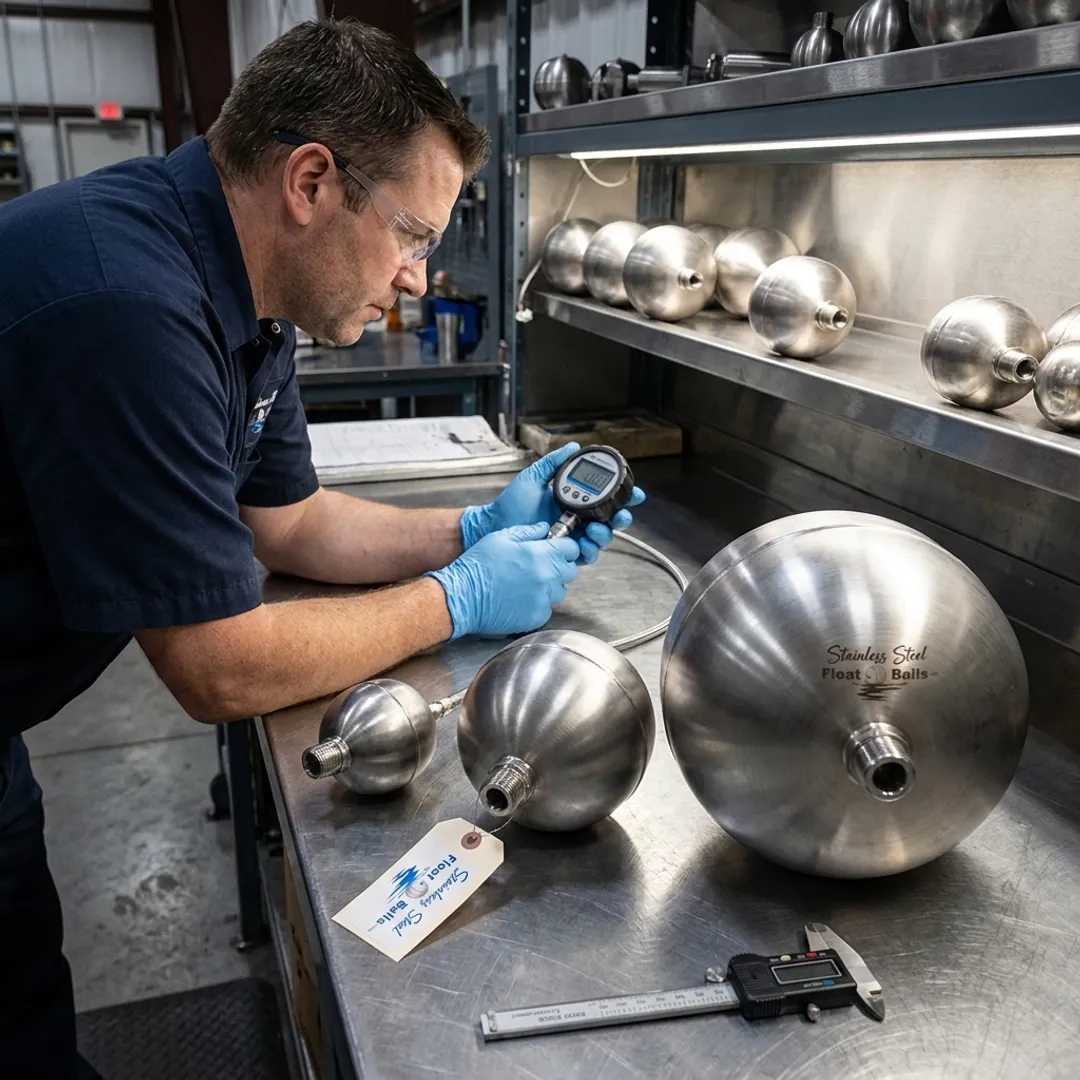

Water tank float balls should be inspected periodically for dents, corrosion, fouling, damaged fittings, or restricted movement. Stainless steel floats are generally low-maintenance, but buildup from minerals, process liquids, or debris can affect buoyancy and accuracy. In sealed or pressurized systems, confirming the float remains leak-free and properly attached is especially important for dependable operation.

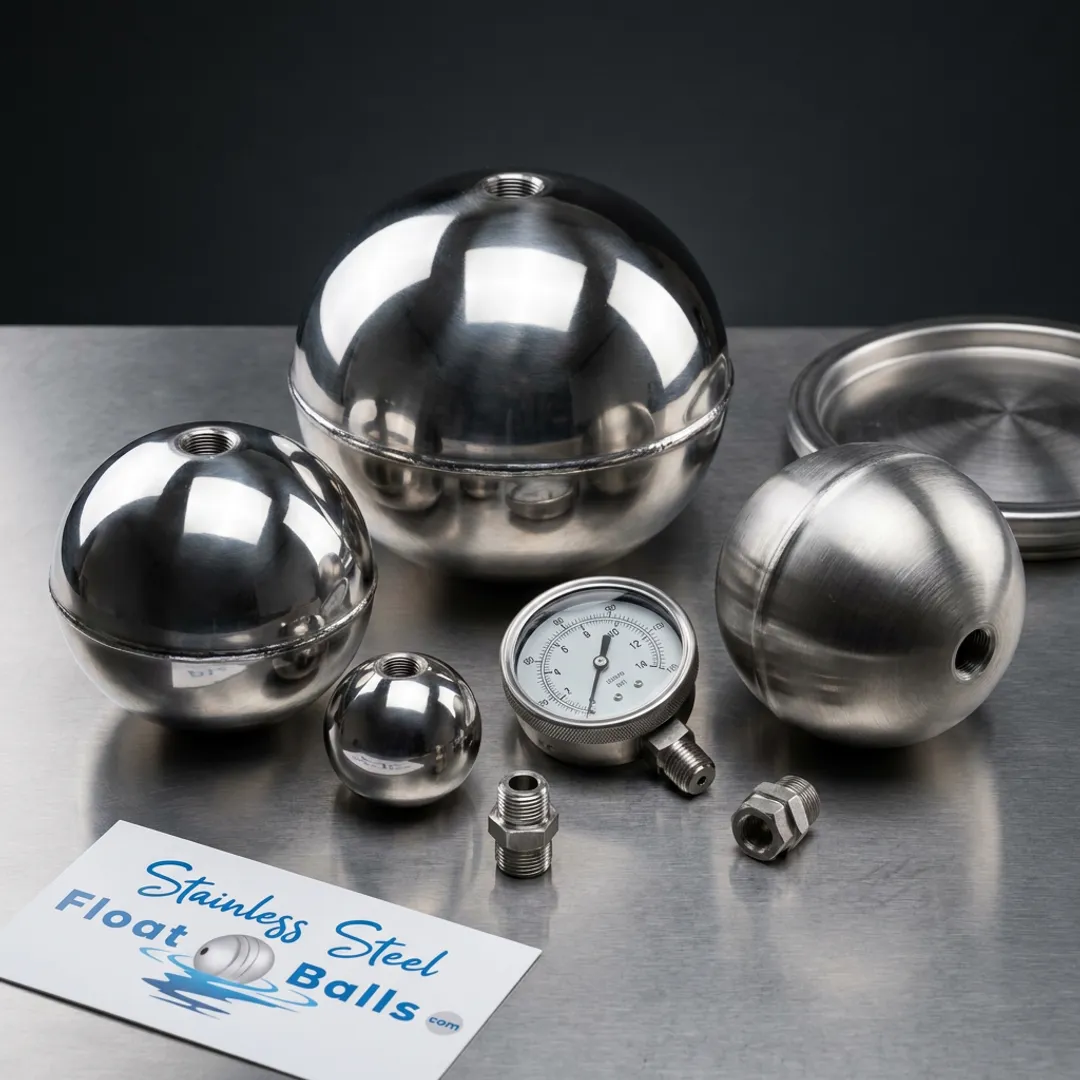

Pressure testing verifies that a float ball can withstand the pressure requirements of its intended application before use. Stainless Steel Float Ball Company has equipment to test floats when higher-than-normal pressure requirements are specified. This helps reduce the risk of leaks, deformation, or performance failure in sealed systems, vacuum tanks, float valves, steam traps, and other critical assemblies.

Most float balls are made from durable stainless steel, commonly 304 stainless steel, with 316 stainless steel also available for applications needing greater corrosion resistance. Other materials may be considered when required. The best choice depends on the liquid, temperature, pressure, cleaning process, and whether the float will be used in food processing, chemicals, wastewater, or industrial equipment.

Yes. Float balls can be supplied with custom threads, through tubes, hooks, fittings, or internal magnets. Common thread options include NPT and UNC sizes, while through tubes can be matched to rods in several diameters. Magnet installation is also available for level detection applications where the float must interact with sensors or measurement devices.

Round stainless steel float balls are available in many sizes, including 1-1/2", 2", 3", 4", 5", 6", 8", 10", 12", and 14" options. Oblong floats are also available in multiple dimensions. Because inventory is regularly expanded and custom sizes can be added, customers can often source a float that closely matches their system design.

Float balls can be finished in matte, brushed, or fully polished styles. Matte is the standard unfinished stainless appearance and may show a visible weld ring. Brushed finishes smooth the weld seam without creating a mirror surface. Fully polished floats provide a reflective finish, often preferred when appearance, reduced surface roughness, or easy cleaning is important.

To request a quote, provide the float size and shape, material preference, pressure requirement, fitting or thread specification, finish, quantity, and application details. If the float needs a through tube, magnet, hook, or unusual connection, include those dimensions as well. Clear specifications help the team recommend stock options, custom manufacturing, or pressure testing to match your system.
