Float Switches for Liquid Level Detection

Float switches are typically connected via the threaded fitting on the float ball to a rod, tube, or valve assembly within your tank or chamber. Custom thread options such as 1/4 NPT, 3/8 NPT, and 3/4 NPT allow direct integration into most standard systems. Through-tube configurations are also available for rod-guided installations.

Whether a float switch should be normally open (NO) or normally closed (NC) depends on your application. For pump activation on rising liquid levels, a normally open configuration is common. For shutoff or overflow protection, a normally closed configuration is typical. Consult your system design or our technical team to confirm the correct configuration.

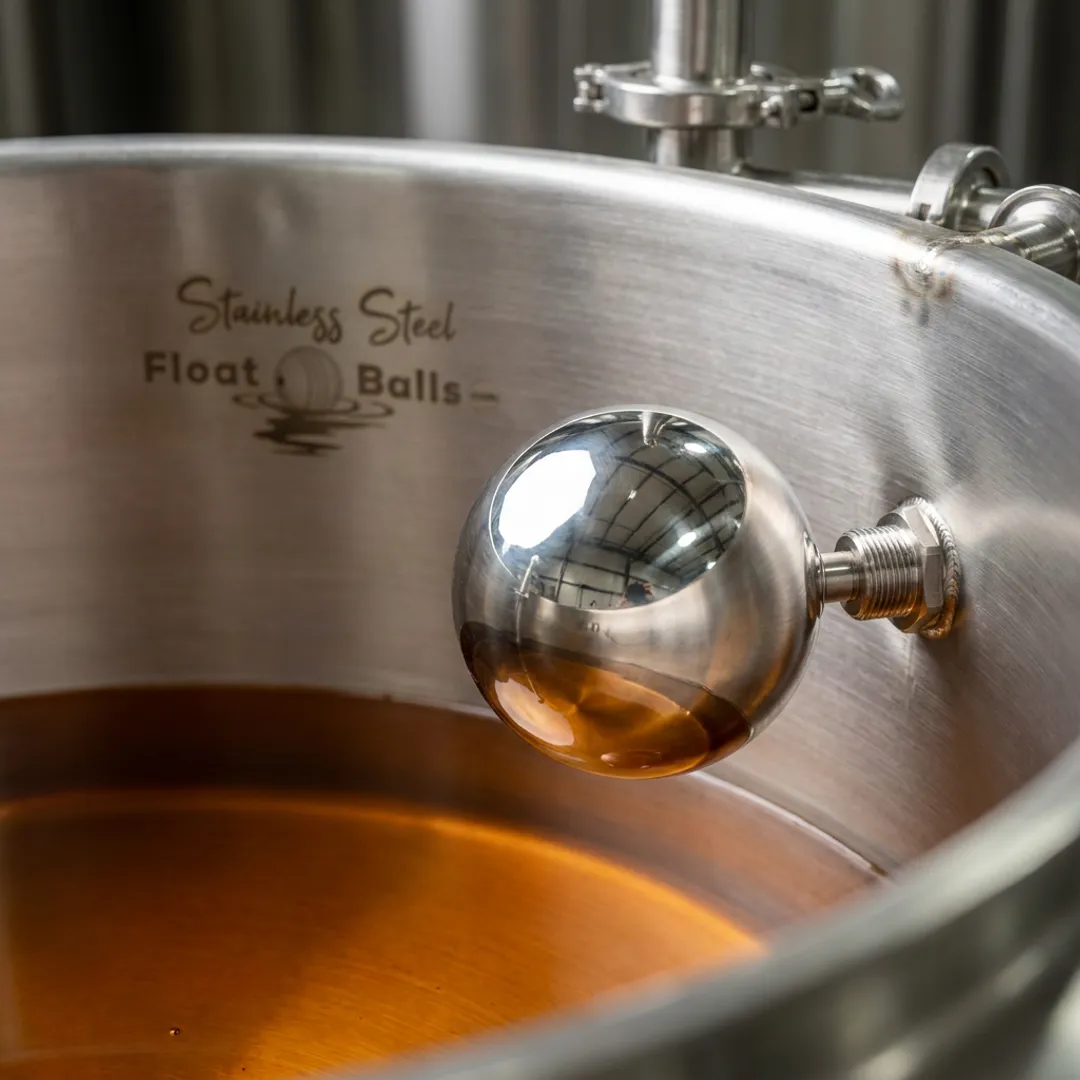

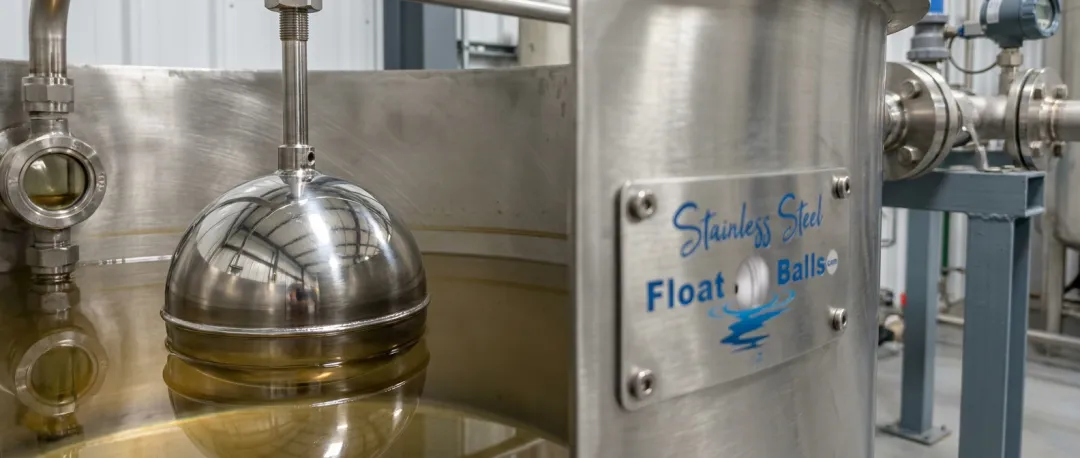

Our float balls are manufactured from 304 stainless steel and 316 stainless steel. 304ss is the most common choice for general industrial use, while 316ss offers superior corrosion resistance for chemical manufacturing, food processing, and harsh wastewater environments. Other materials are available upon request for specialized applications.

Yes. We source and assemble custom magnets inside float balls to enable precise, contactless liquid level detection. Magnet-integrated float balls are compatible with reed switches and magnetic sensors, making them ideal for automated process control systems in industrial, food processing, and wastewater applications.

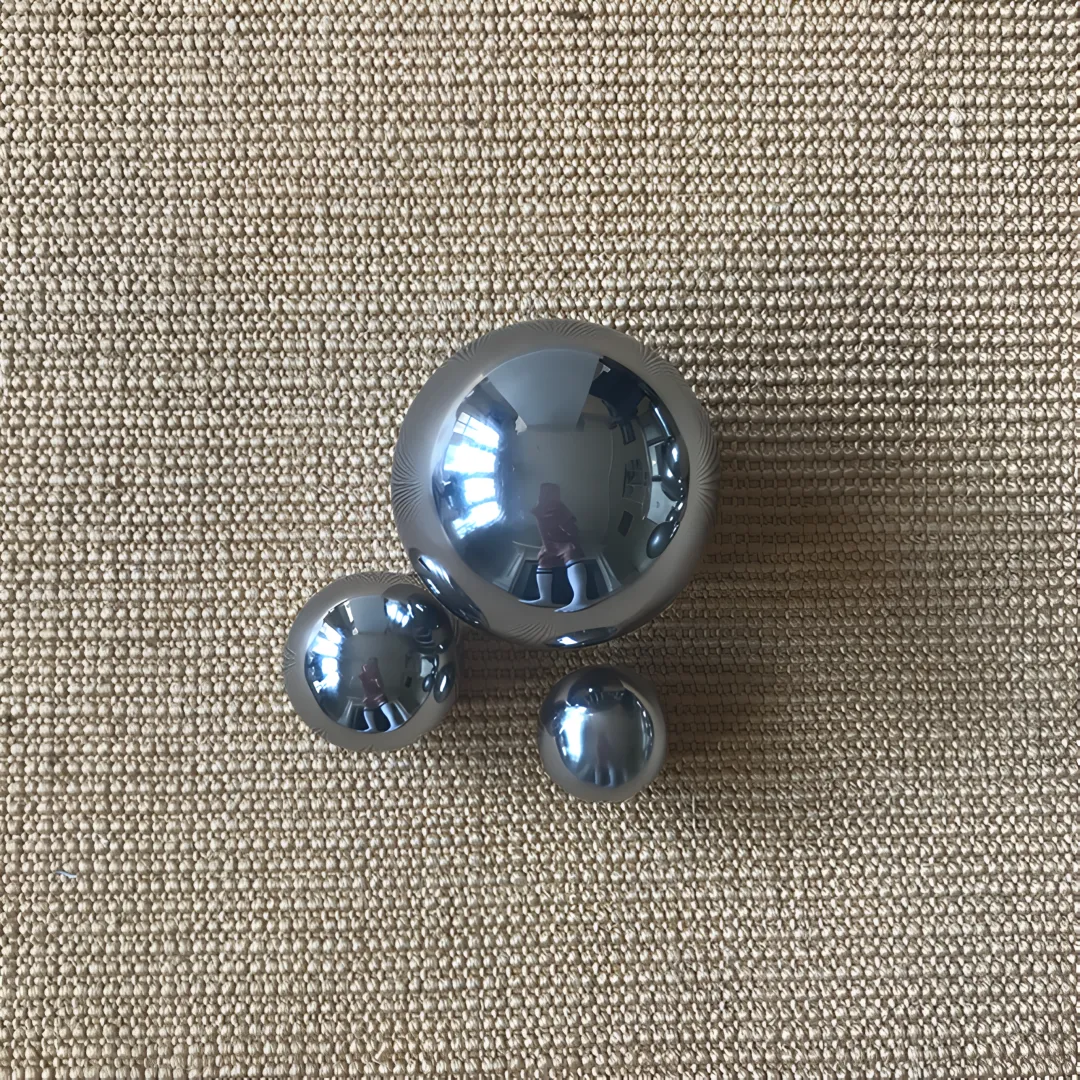

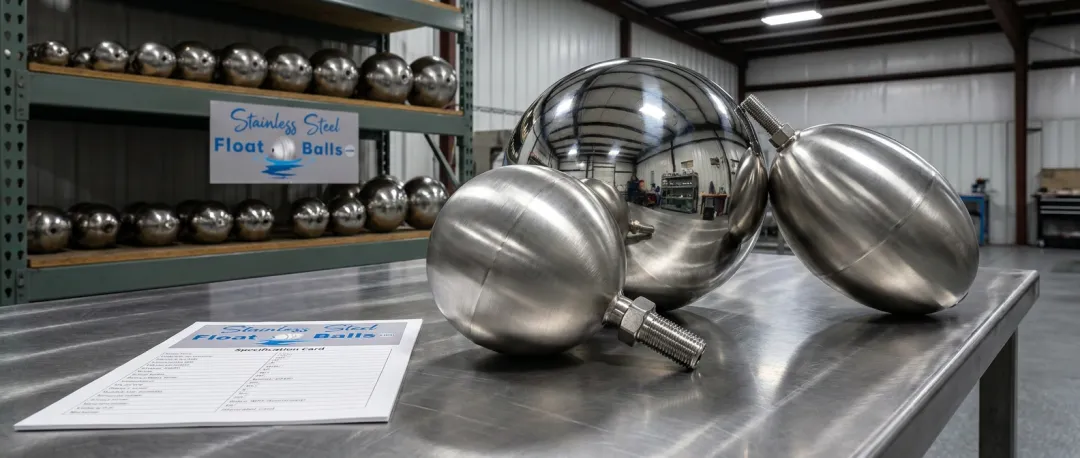

We offer round float balls in sizes from 1-1/2" to 14" diameter, and oblong floats in multiple dimensions including 2x6", 3x5", 7x12", and 9x14". Both shapes are available with custom threads, through-tube options, and finishes including matte, brushed, and fully polished mirror finish.

Yes. We have equipment to pressure-test float balls to meet your custom specifications. Pressure testing ensures the float maintains its integrity in high-pressure environments such as steam traps, vacuum tanks, and industrial process systems, giving you confidence in long-term reliability and performance.
