Magnetic Float Fuel Level Sensors

A fuel level float rests on the liquid surface and moves vertically with the fuel level. Attached to a pivot arm or guide tube, its position is translated into a readable signal — either mechanical, magnetic, or electrical. Stainless steel floats with integrated magnets enhance accuracy by actuating external sensors without penetrating the tank wall.

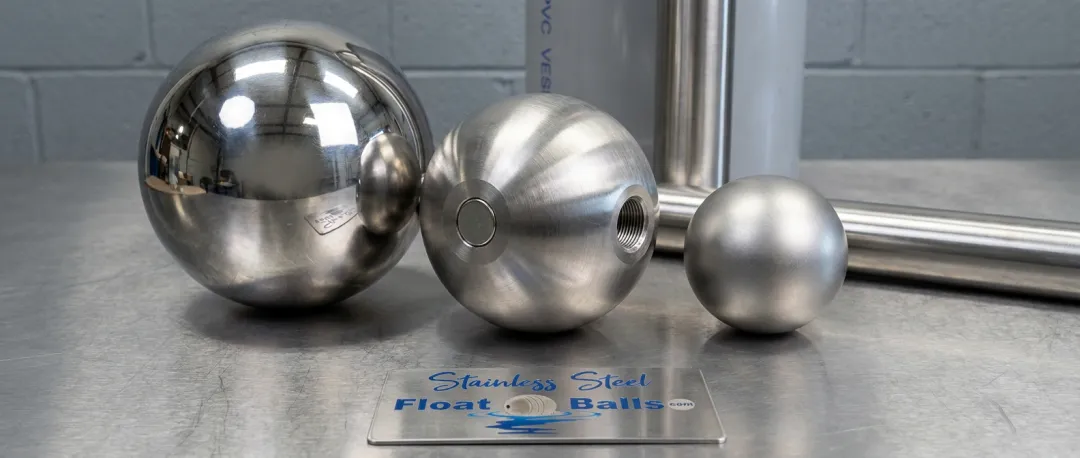

Our magnetic float sensors are manufactured from 304 stainless steel, the most widely used grade, and 316 stainless steel for enhanced corrosion resistance in harsh chemical or marine environments. Both grades are pressure-tested and available in matte, brushed, or fully polished mirror finishes to suit your application requirements.

Yes. Any thread specification can be tapped into our float balls, including 1/4-20, 3/8-16, 1/4 NPT, 3/8 NPT, 1/2 NPT, 5/8-11 UNC, and 3/4 NPT. Through tube options for rods from 3/8" to 3/4" diameter are also available. Contact us with your exact requirements for a custom quote.

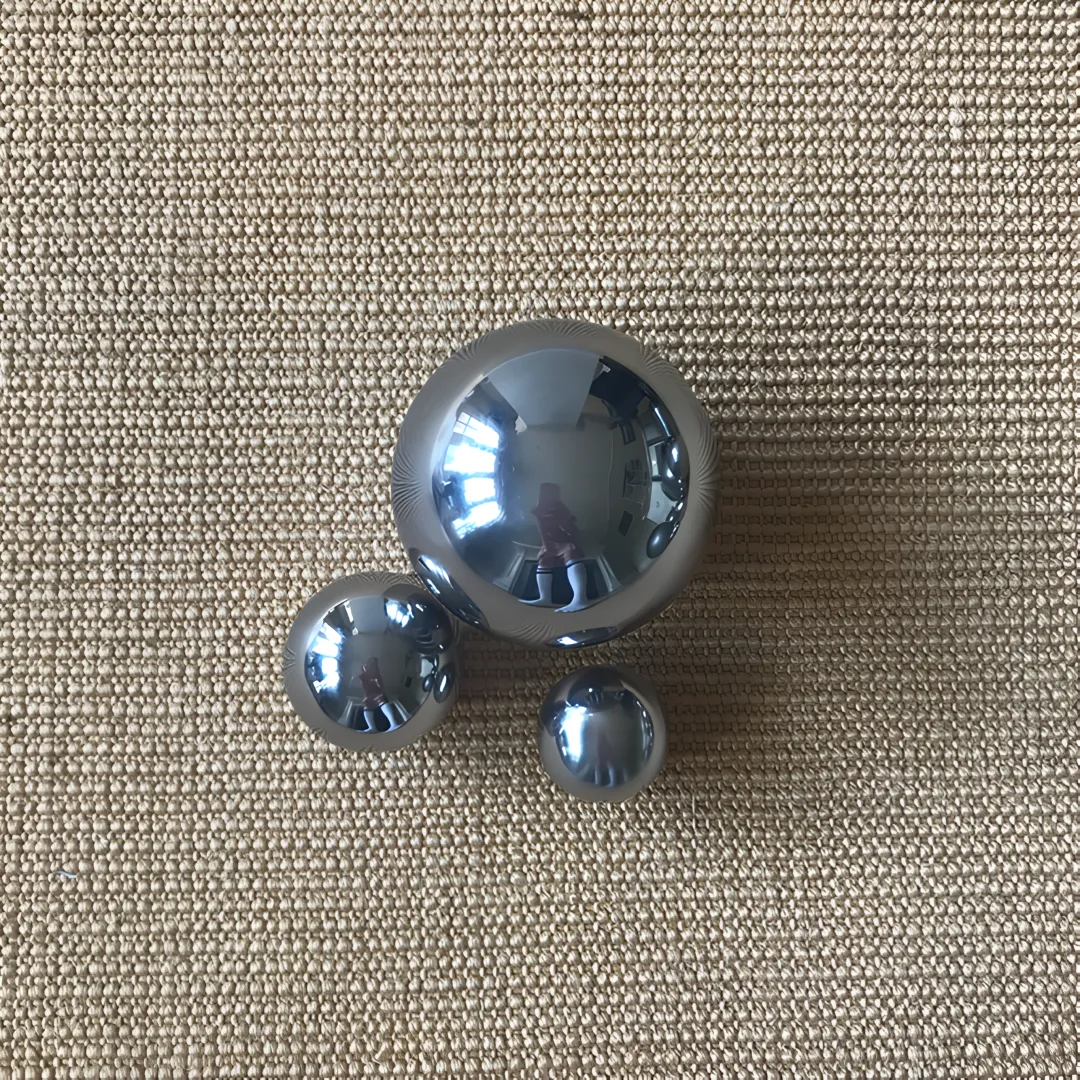

Round float balls are available in diameters from 1-1/2" up to 14". Oblong floats range from 2 x 6" up to 9 x 14", with common fittings including 1/4-20 and 3/4" NPT threads. Custom sizes beyond standard inventory can be added and manufactured to your exact dimensional specifications upon request.

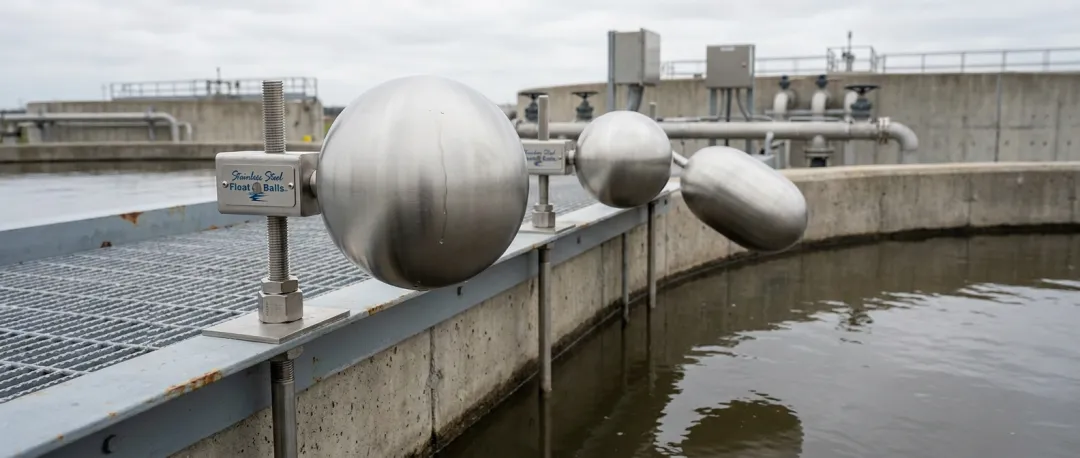

Yes. Our 304ss and 316ss stainless steel construction makes these magnetic float sensors ideal for food processing tanks, vats containing oils and syrups, and wastewater treatment facilities. The corrosion-resistant material withstands aggressive cleaning agents and harsh liquids while maintaining accurate level detection over extended service life.

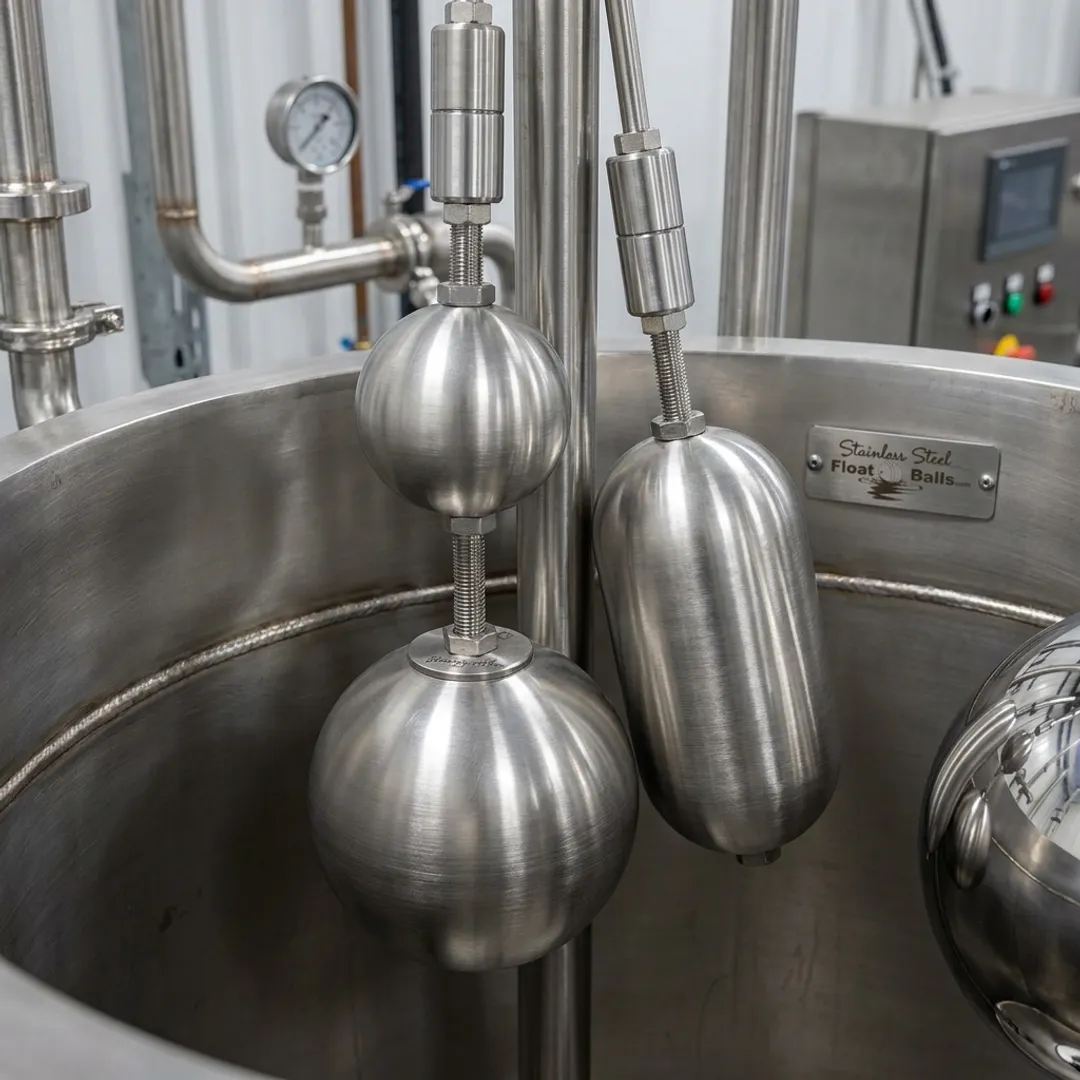

Yes. We have pressure testing equipment available to test float balls to meet your specific system requirements. This ensures structural integrity and reliable performance in high-pressure industrial environments, including steam traps, vacuum tanks, and chemical processing systems. Pressure testing specifications can be discussed during your custom design consultation.
