Float Ball Valves

A standard ball valve uses a rotating ball with a bore to manually or automatically control flow direction, while a ball float valve uses a buoyant float ball that rises and falls with liquid level to automatically open or close the valve. Float valves are self-actuating and don't require external control signals.

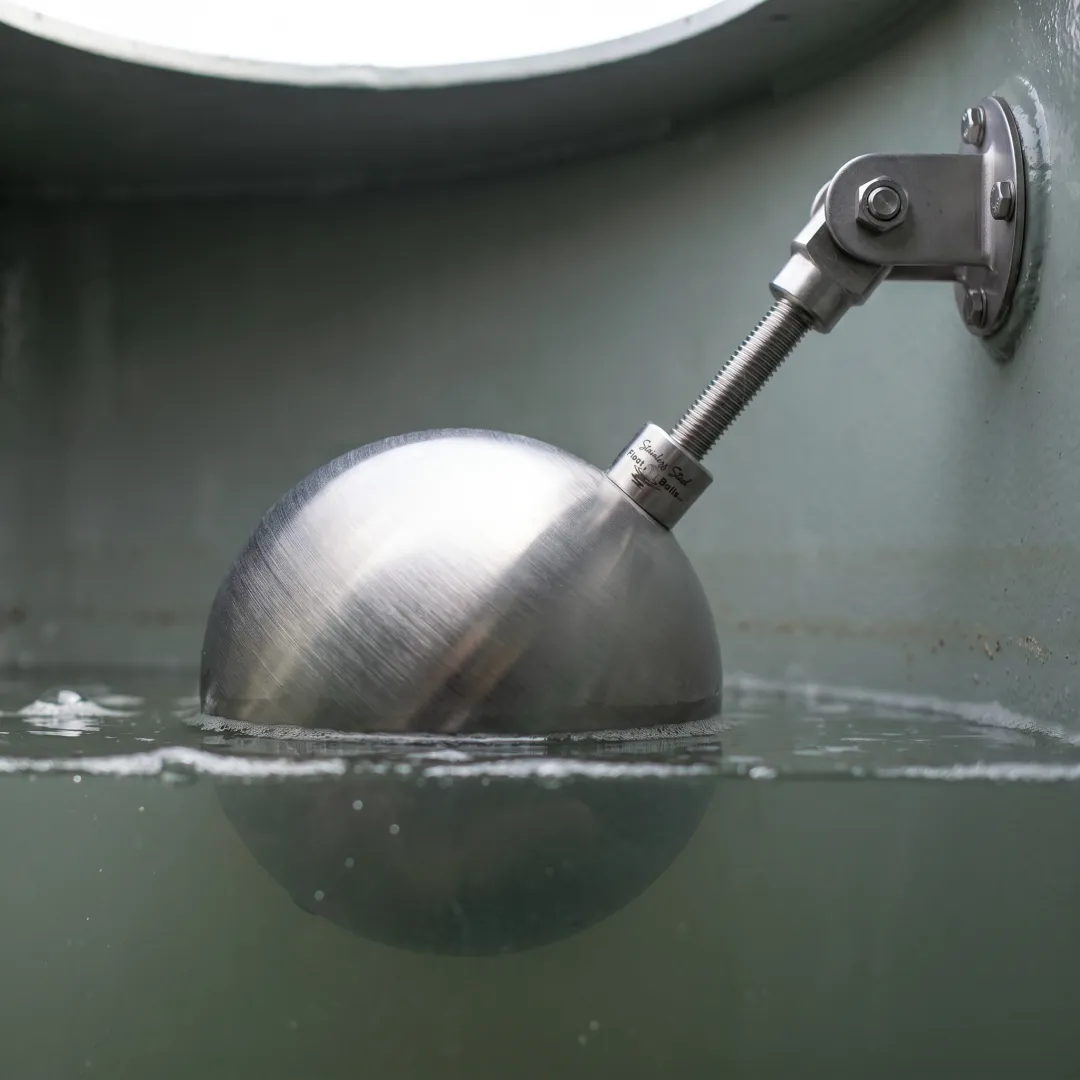

A float valve works by using a buoyant float ball connected to a lever or rod mechanism inside a tank or chamber. As liquid rises, the float rises with it, mechanically closing the valve to stop flow; as liquid level drops, the float lowers and reopens the valve, maintaining consistent liquid levels without electronic controls.

Our float balls are manufactured primarily from 304 and 316 stainless steel, chosen for their corrosion resistance, durability, and suitability for demanding industrial, chemical, and food-grade applications. Other materials are available upon request for specialized applications requiring different chemical compatibility or weight characteristics.

Yes, float balls can be custom-built with integrated magnets for precise level detection, plus custom threads, through tubes, and fittings to match your existing system hardware. Our engineering team sources and assembles magnets internally and taps any thread specification to ensure seamless integration.

Round float balls range from 1-1/2" to 14" in diameter, while oblong floats are available in sizes such as 2 x 6", 3 x 5", 7 x 12", and 9 x 14", among others. Custom sizes outside these standard ranges can also be manufactured to meet specific application requirements.

Yes, all float balls can be pressure-tested using dedicated equipment to meet custom specifications, ensuring reliable performance in high-pressure industrial environments such as vacuum tanks, steam traps, and chemical processing systems. Testing verifies structural integrity before shipment to prevent field failures.
