Industrial Float Valves With Custom Float Balls

Float valves are commonly classified by their operating arrangement and application. Mechanical tank-fill valves use a buoyant float connected to a lever or linkage to open and close flow. Other designs use float components in vacuum shutoffs, steam-trap mechanisms, sump systems, and level-control assemblies. Industrial designs may use stainless steel spherical or oblong floats with threaded fittings, through tubes, or magnets to suit the valve mechanism.

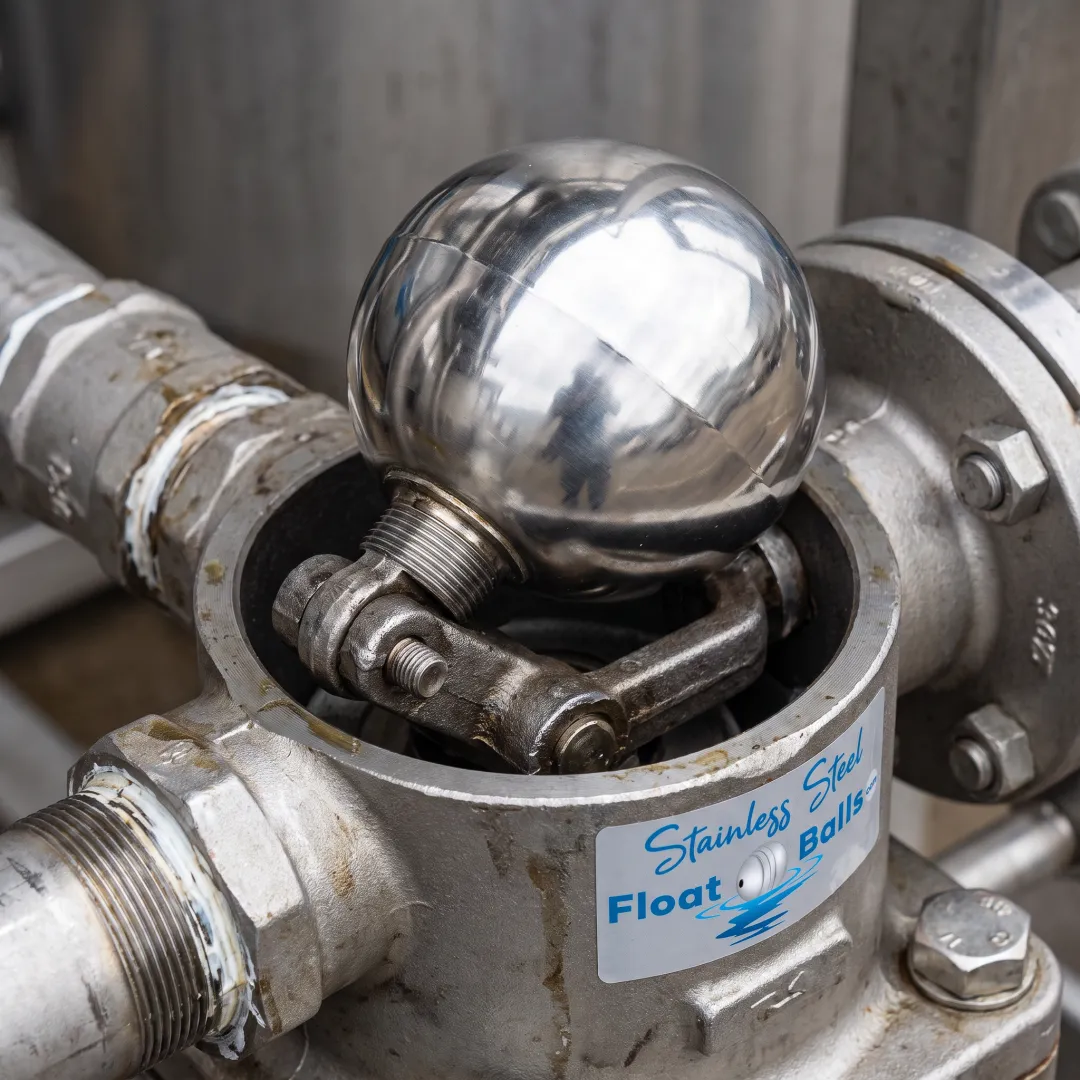

A typical float valve includes a buoyant float, an arm, stem, or guide mechanism, and a valve seat that controls flow. In industrial equipment, the float is often a hollow stainless steel ball or oblong body mounted on a rod, cable, or threaded connection. As liquid level changes, the float moves and actuates the valve or a related control device. The exact layout varies by tank, pressure, and process requirements.

Stainless steel is a common choice for industrial float valve balls because it is durable and versatile in liquid-based systems. Stainless Steel Float Ball Company most commonly supplies 304SS, followed by 316SS, with other materials available when required. Material selection should consider the liquid being handled, operating environment, corrosion exposure, pressure requirements, and the compatibility of the float with connected valve components.

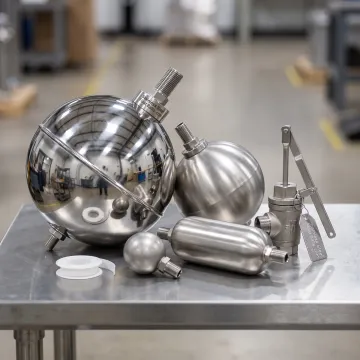

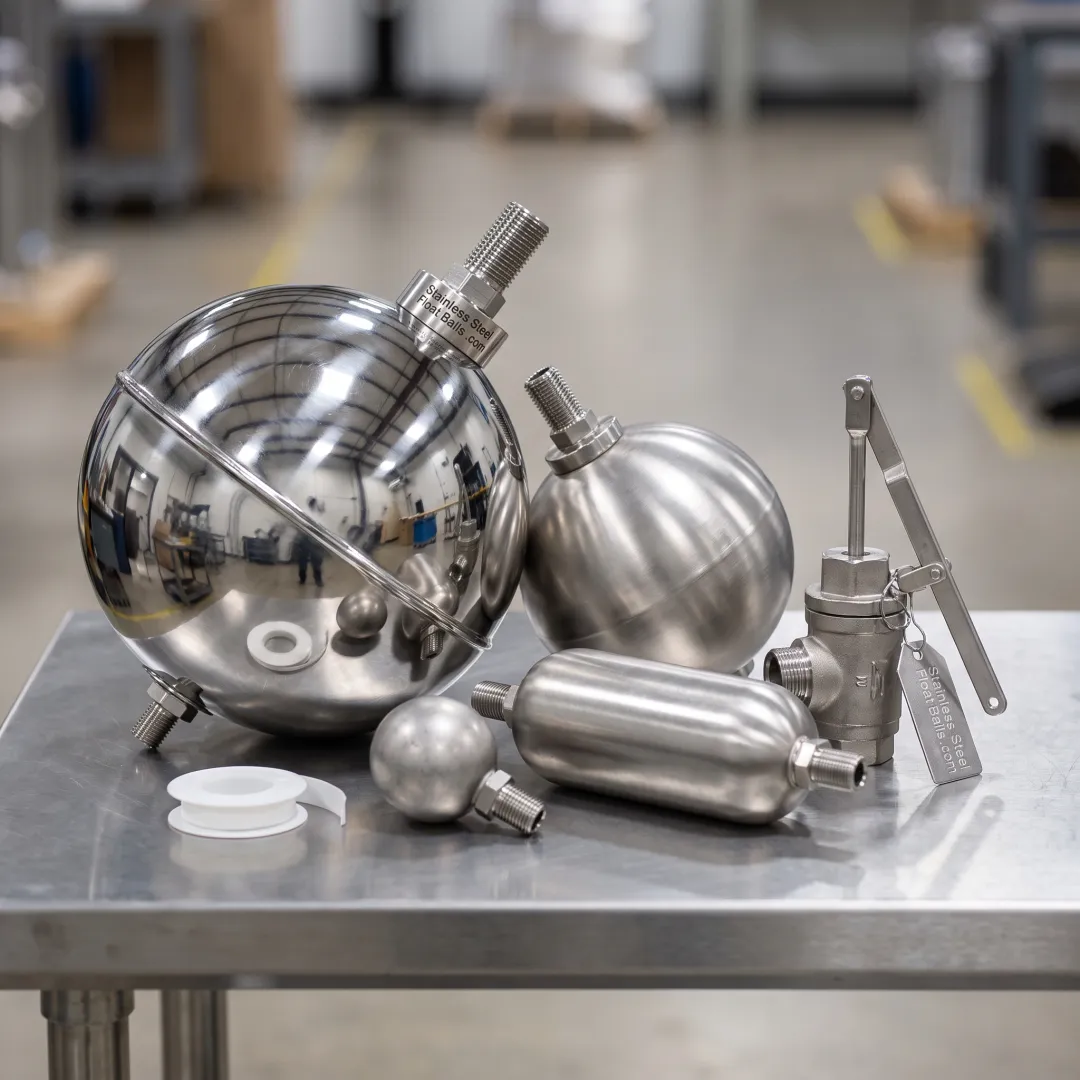

Yes. Float balls can be produced or modified with the connection features needed for an existing valve design, including tapped threads, through tubes, hooks, and other fittings. Stainless Steel Float Ball Company can accommodate common NPT and UNC thread specifications and rod-compatible through tubes. Providing the required float size, shape, connection type, operating conditions, and valve details helps ensure a suitable fit.

Industrial float balls can be pressure-tested when an application requires it. Stainless Steel Float Ball Company has equipment to test floats to customer specifications, including systems with higher-than-normal pressure requirements. Pressure testing is especially relevant when the float must remain sealed and dependable in demanding liquid-control equipment. Share the operating pressure and application details during quoting so testing requirements can be addressed appropriately.

Round stainless steel float balls are available in a range of sizes, including 1-1/2, 2, 3, 3-1/2, 4, 5, 6, 7, 8, 10, 12, and 14 inches. Oblong float configurations are also available in multiple dimensions. Stock sizes may be paired with threads or through tubes, while custom shapes and dimensions can be developed for application-specific valve requirements.

Yes. Magnets can be sourced and assembled inside float balls when an application needs magnetic level detection or another enhanced control function. Internal magnets are useful in systems where float position must be detected precisely without a direct external mechanical connection. The magnet type, placement, float size, and expected operating conditions should be specified so the assembly can be matched to the system.

Tailored supply programs help float valve manufacturers maintain access to the components they use most while managing inventory and freight costs. Stainless Steel Float Ball Company can structure a program around customer objectives, whether that means holding consistent inventory, supporting recurring orders, or arranging direct shipments. This approach can simplify procurement for standard float sizes as well as custom parts used in ongoing production.
