Ball Float Vent Valve Solutions

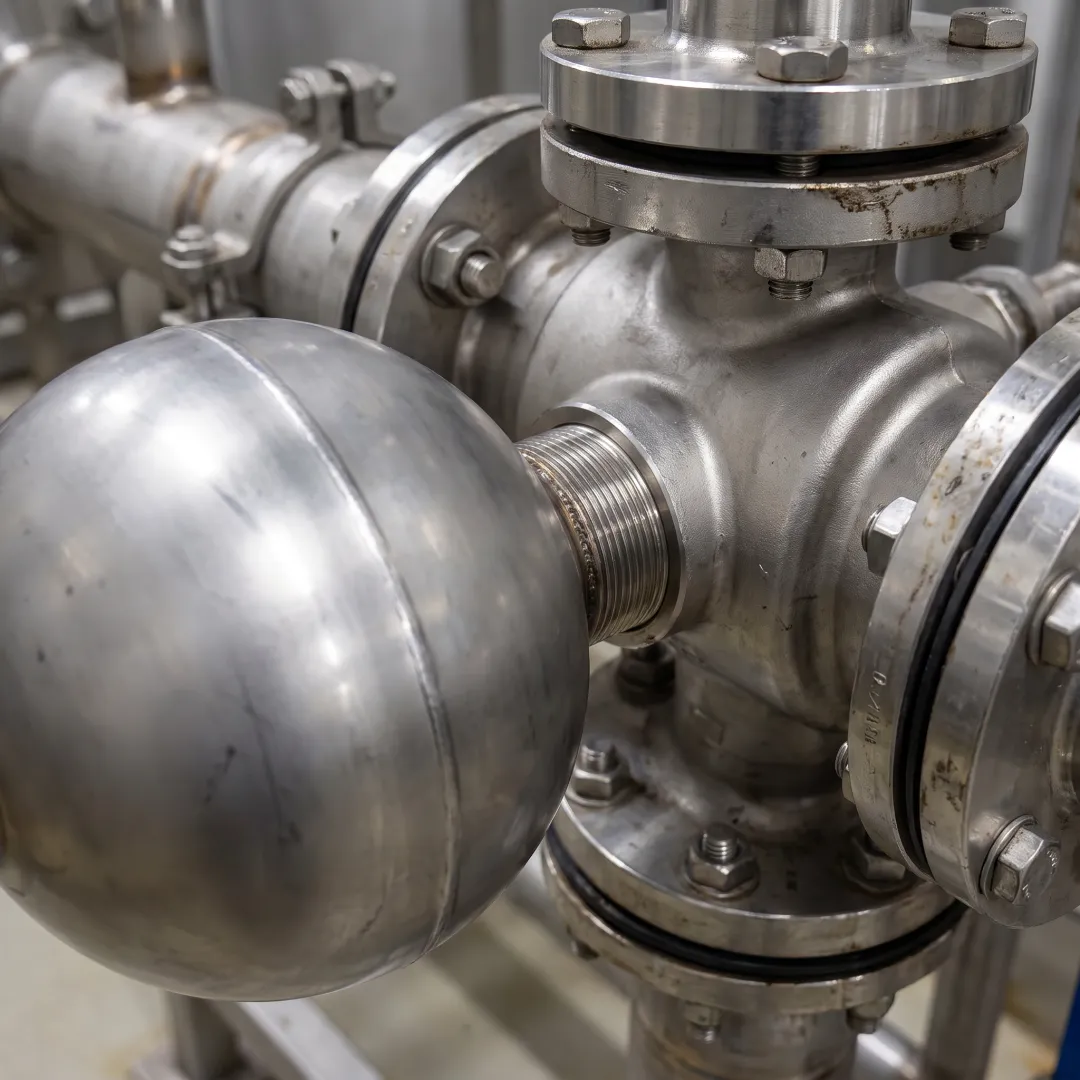

A ball float vent valve uses a buoyant float, often a hollow stainless steel ball, to respond to changing liquid levels inside a vessel or valve body. As the level changes, the float moves to open, close, or influence a valve mechanism. The correct ball size, buoyancy, connection, material, and pressure capability must suit the specific equipment design and operating conditions.

Float balls are most commonly manufactured in 304 stainless steel, with 316 stainless steel also available. Material selection should reflect the media being handled, expected corrosion exposure, temperature, cleaning requirements, and application environment. When a standard grade is not appropriate, other materials may be available for a custom requirement. Confirm material compatibility before finalizing a valve component specification.

Yes. Float balls can be customized with threads, through tubes, hooks, and other fittings to match a valve or level-control assembly. Common threaded options include NPT and UNC configurations, while through tubes can be sized for specific rod diameters. Providing the required thread specification, connection type, dimensions, and application details helps ensure the finished float integrates correctly with your equipment.

Float balls can be pressure-tested when an application requires verification beyond normal operating conditions. Testing can be tailored to a customer’s stated pressure requirement, helping confirm the float is appropriate for the intended system. Share the target test pressure, operating pressure, media, and temperature during specification. This information supports selection of a float design suited to demanding valve, tank, or level-control service.

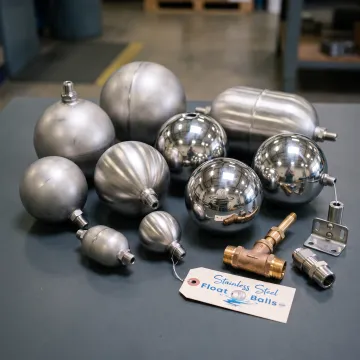

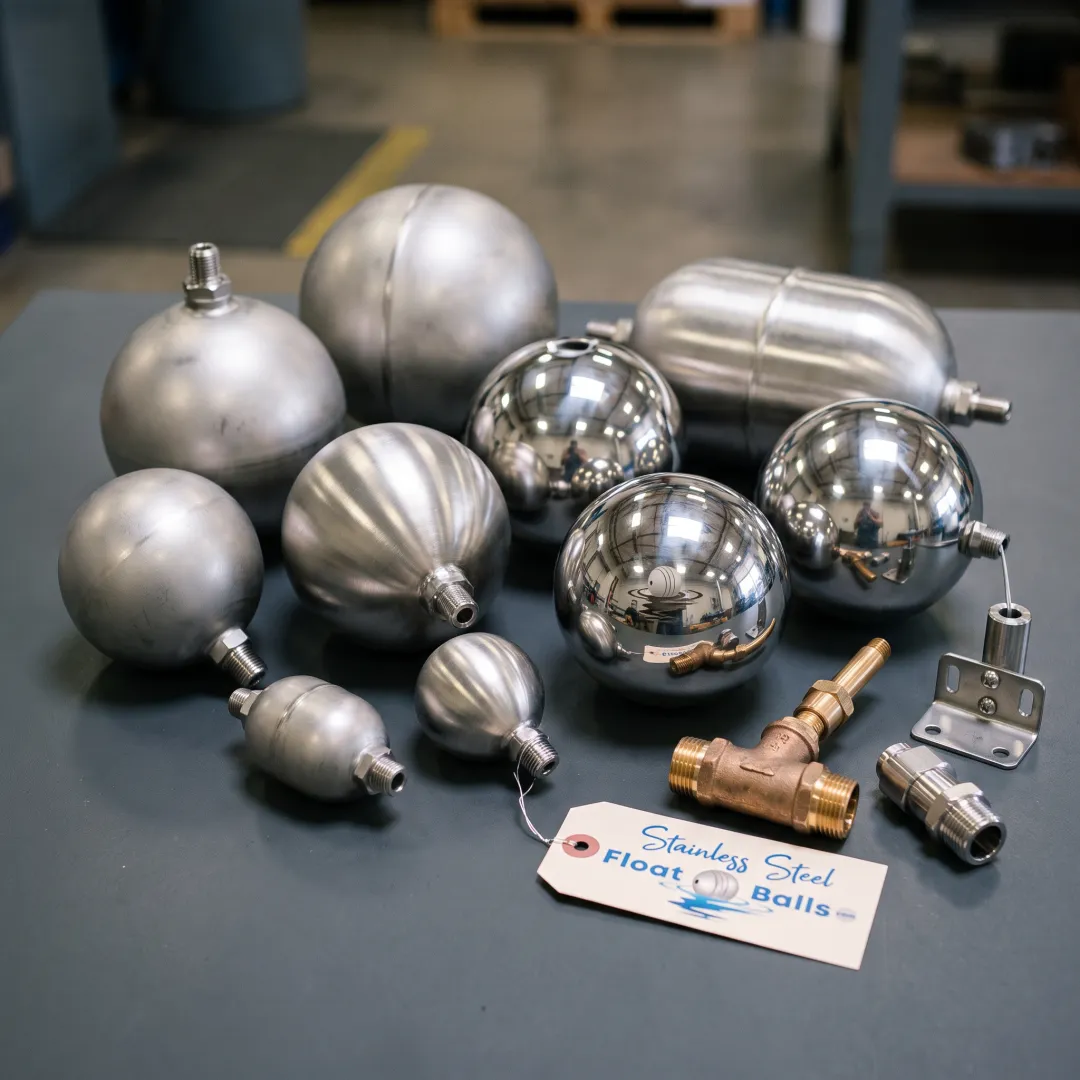

Round float balls are available in a range of common sizes, including 1-1/2, 2, 3, 3-1/2, 4, 5, 6, 7, 8, 10, 12, and 14 inches. Oblong designs are also available in multiple dimensions. Stocked options can speed sourcing, while custom sizes and shapes can be produced to meet specific buoyancy, clearance, and connection requirements.

Yes. Magnets can be sourced and assembled inside a float ball for applications that need magnetic level detection or position sensing. This is useful where an external sensor must detect float movement without direct mechanical contact. Specify the sensing arrangement, required magnet performance, float dimensions, operating environment, and pressure conditions so the internal magnetic component can be configured appropriately.

Start with the valve’s required float dimensions, available travel space, connection method, and intended liquid level. Then consider the media, operating pressure, temperature, corrosion exposure, and whether sensing or magnetic functionality is needed. A float must provide appropriate buoyancy while fitting the mechanical valve design. Supplying drawings, photographs, or existing-part dimensions makes custom specification more accurate.

Yes. Stainless Steel Float Ball Company ships directly to customers worldwide, supporting manufacturers and operators that need stocked or custom stainless steel float components. For an efficient order review, provide quantity, dimensions, material preference, fittings, pressure-testing needs, and destination. Tailored supply programs may also help customers coordinate inventory availability and freight objectives for recurring production or replacement requirements.
