Oil Floats

Float position is read relative to a calibrated scale, sight gauge, or through a magnetic coupling connected to an external indicator. As liquid level changes, the float rises or falls, moving an attached rod, tube, or magnet that triggers a switch or moves a pointer, giving an accurate real-time reading of oil level within the tank.

Oil floats to the top of water and most aqueous liquids because it has a lower density. In multi-layer tanks, oil settles above the water layer, which is why float balls designed for oil-water interface detection are engineered to sit precisely at that boundary for accurate level and separation monitoring.

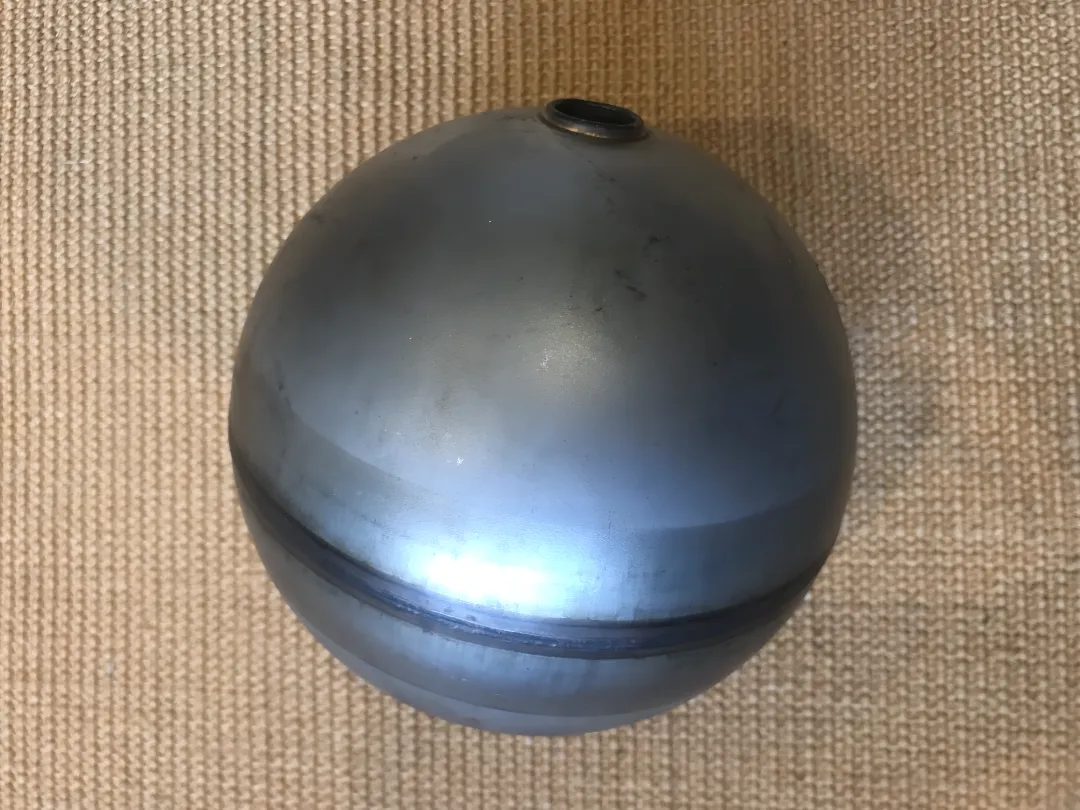

Our float balls are manufactured primarily from 304 stainless steel, with 316 stainless steel available for enhanced corrosion resistance in chemical or marine environments. Both grades offer durability, resistance to rust, and long service life compared to plastic alternatives, making them suitable for oil, fuel, and other industrial liquid applications.

Yes, we source and assemble custom magnets inside float balls to enable precise, non-contact level detection in complex systems. Magnetic floats work with external reed switches or sensors to trigger alarms, pumps, or valves, making them ideal for automated liquid level monitoring in oil tanks and vacuum systems.

Round float balls range from 1-1/2 inch up to 14 inches in diameter, while oblong floats are available in sizes such as 2 x 6 inch, 3 x 5 inch, 7 x 12 inch, and 9 x 14 inch, among others. Custom sizes and thread specifications can also be manufactured on request.

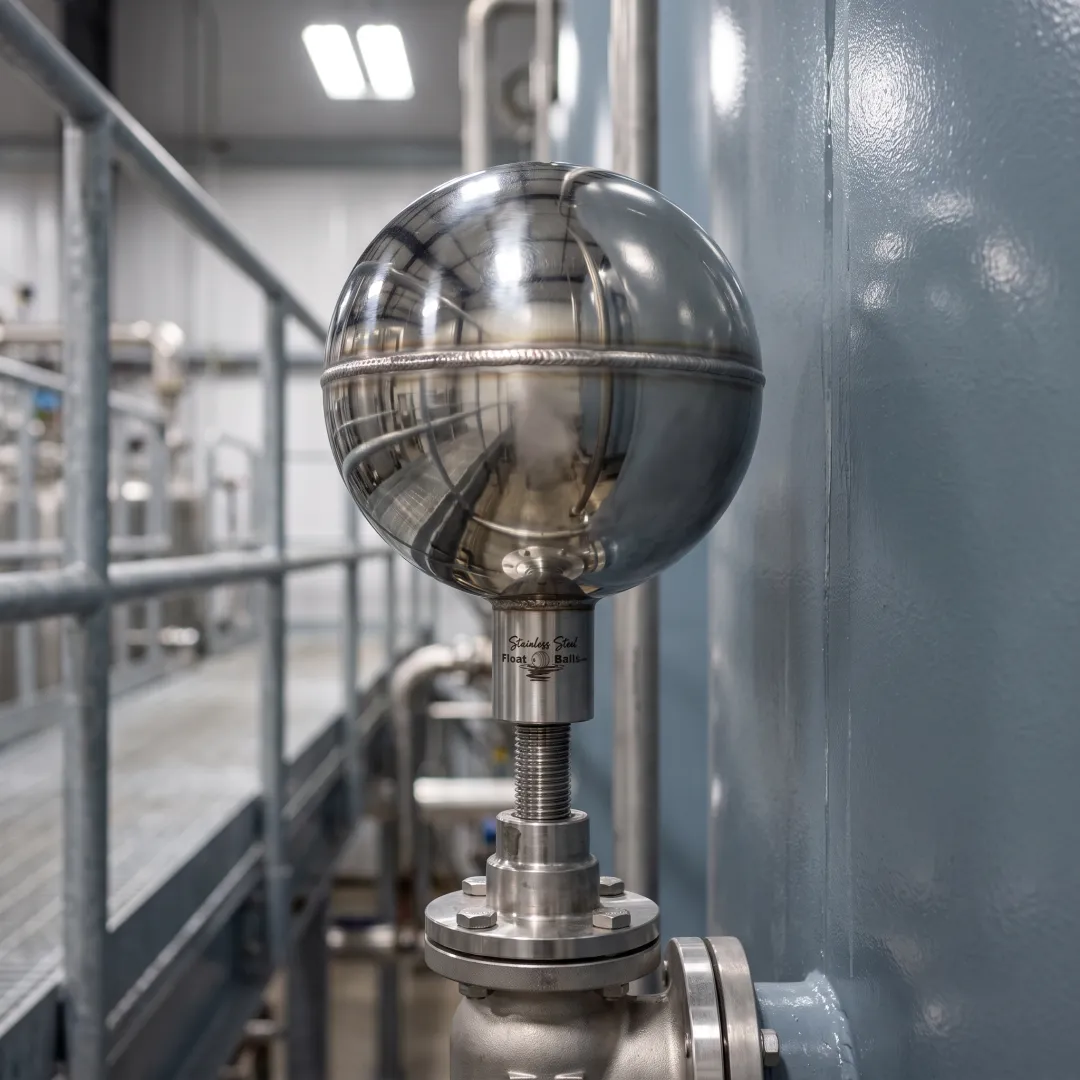

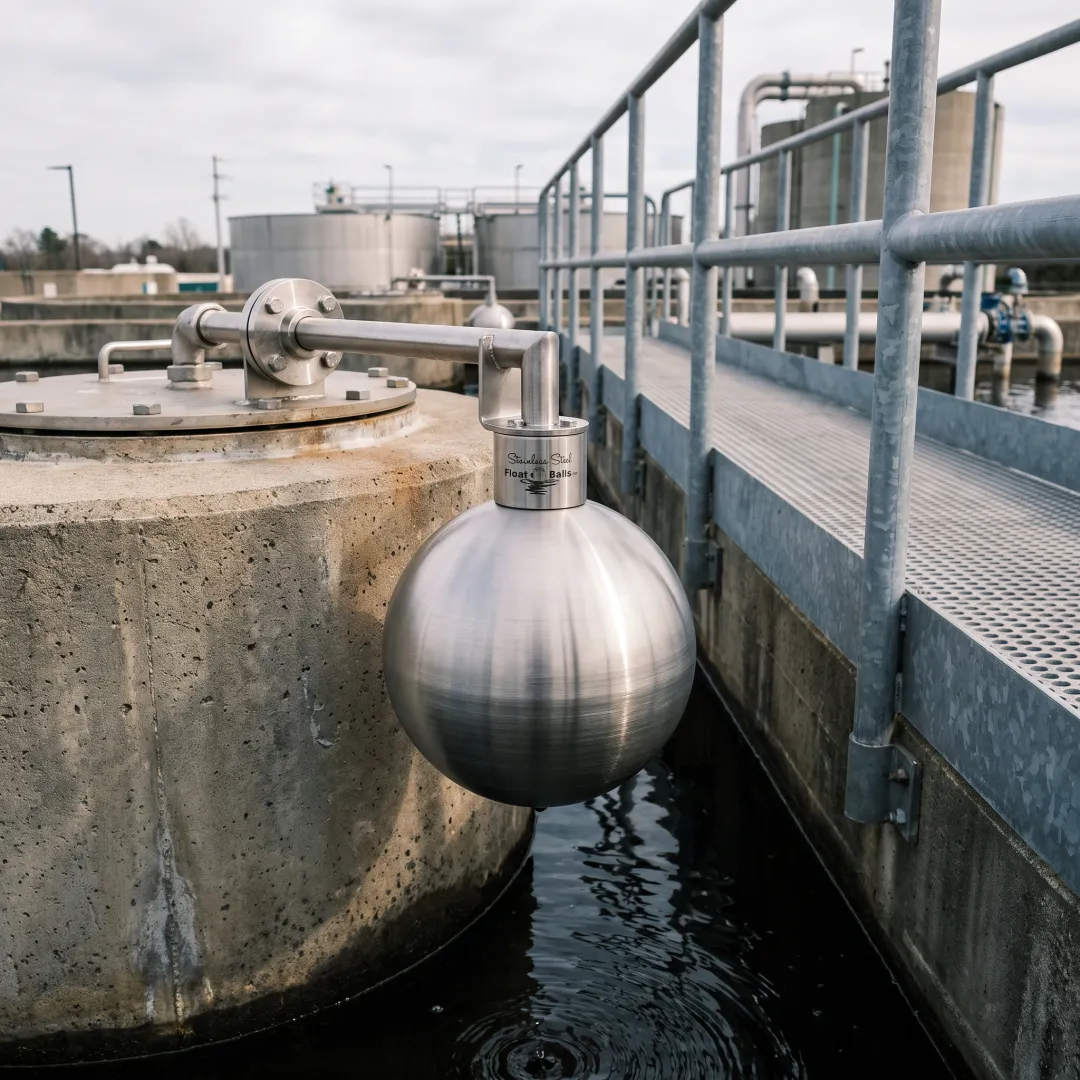

Yes, our stainless steel float balls are pressure-tested to meet custom specifications and are available in 316 stainless steel for improved resistance to corrosive liquids such as chemicals and treated wastewater. This makes them well-suited for demanding environments including chemical manufacturing, steam traps, and vacuum tank operations.
