Liquid Level Floats for Switches & Controls

A level float rests on the liquid surface and rises or falls with the liquid level. It is connected via a rod, thread, or tube to a control mechanism such as a valve or switch. When the float reaches a set height, it activates or deactivates the connected device. Magnet-integrated floats can trigger reed switches for contactless, precise level detection.

A floating level refers to the real-time position of a float on a liquid surface, which corresponds directly to the current liquid level in a tank or vessel. As the liquid volume changes, the float's vertical position changes proportionally. This mechanical position data is then converted into control signals for pumps, valves, or alarms in level measurement systems.

Liquid level measurement tracks the height of liquid within a container. Float-based systems use a buoyant ball or oblong float that rides the liquid surface. The float's movement is translated into mechanical or electronic signals via attached fittings, threads, or magnets. These signals trigger control devices like sump pumps, float valves, or vacuum pump shutoffs, maintaining desired liquid levels automatically.

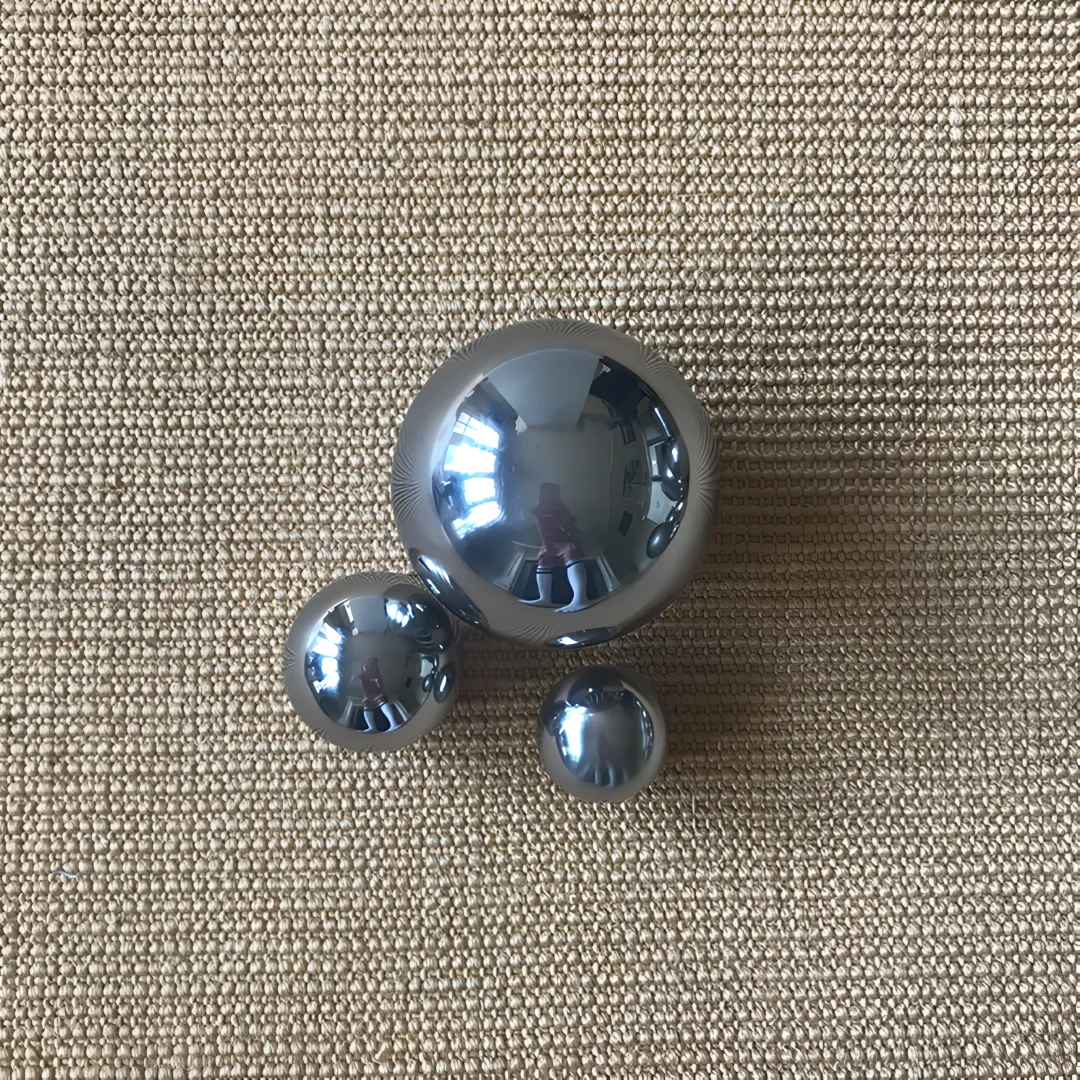

Our float balls are manufactured from 304 stainless steel, the most common grade, and 316 stainless steel for enhanced corrosion resistance in aggressive chemical or marine environments. Both grades are available in round and oblong shapes with matte, brushed, or fully polished finishes. Other materials can be sourced upon request for specialized applications.

Yes. All our stainless steel float balls can be pressure-tested to meet custom specifications using our in-house testing equipment. This ensures each float performs reliably under elevated pressures encountered in steam traps, industrial process lines, and vacuum tank applications. Customers can specify their exact pressure requirements when placing a custom order.

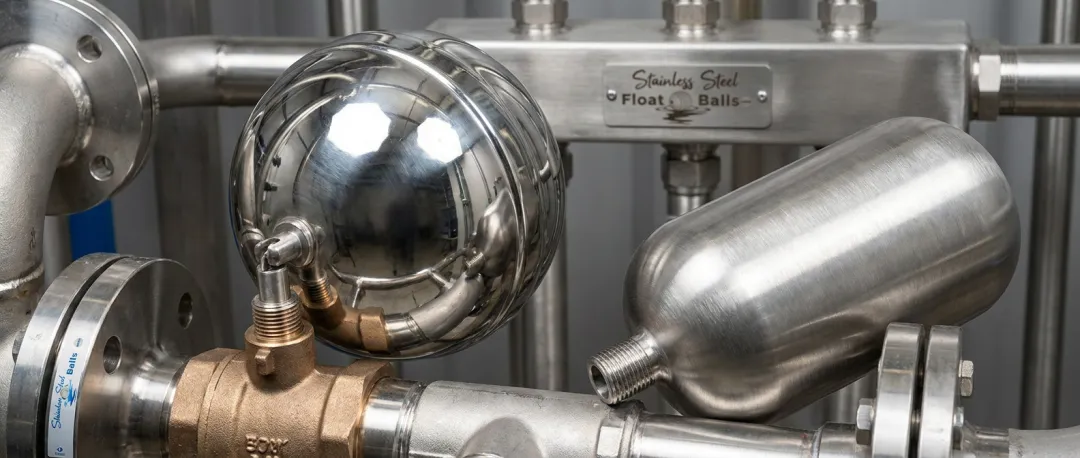

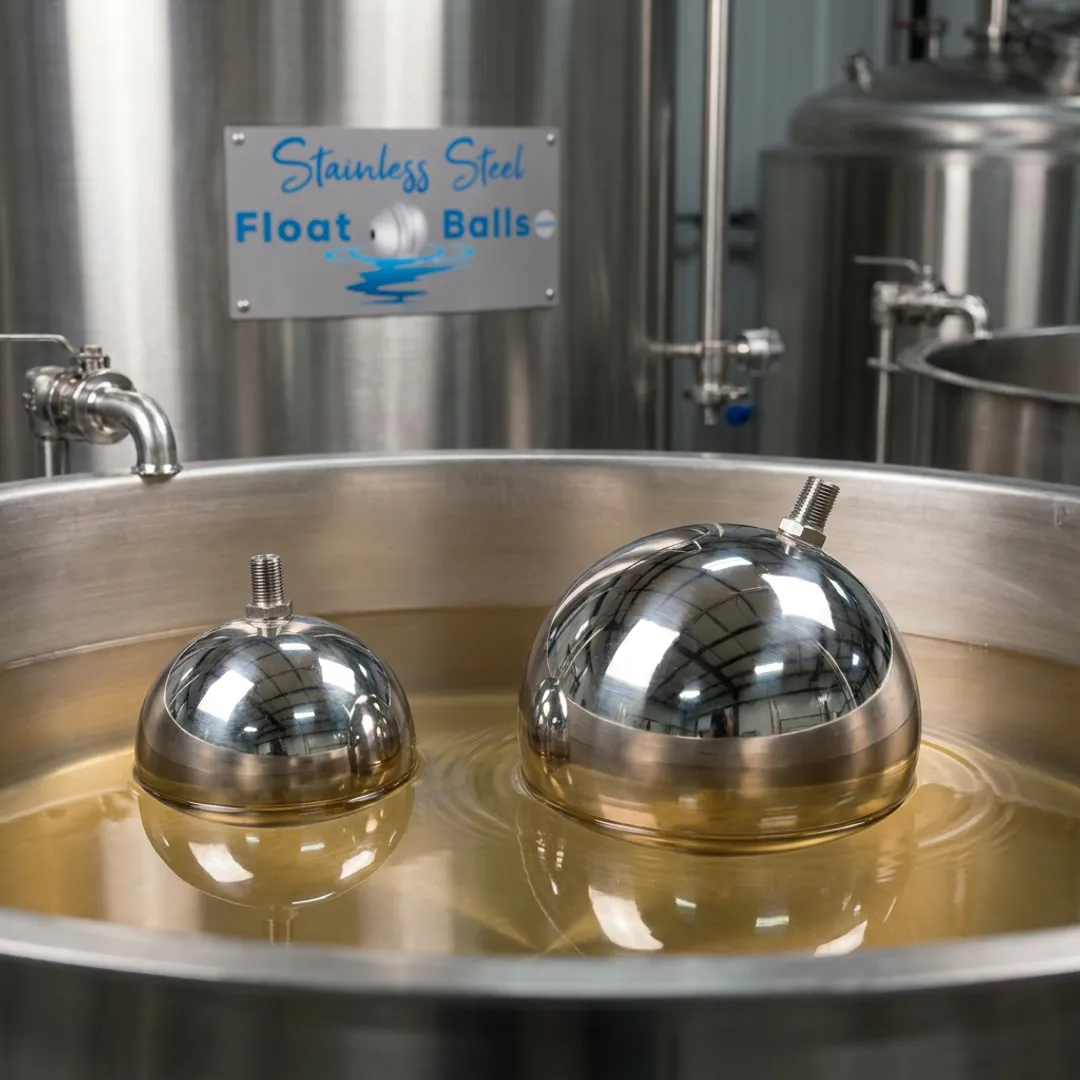

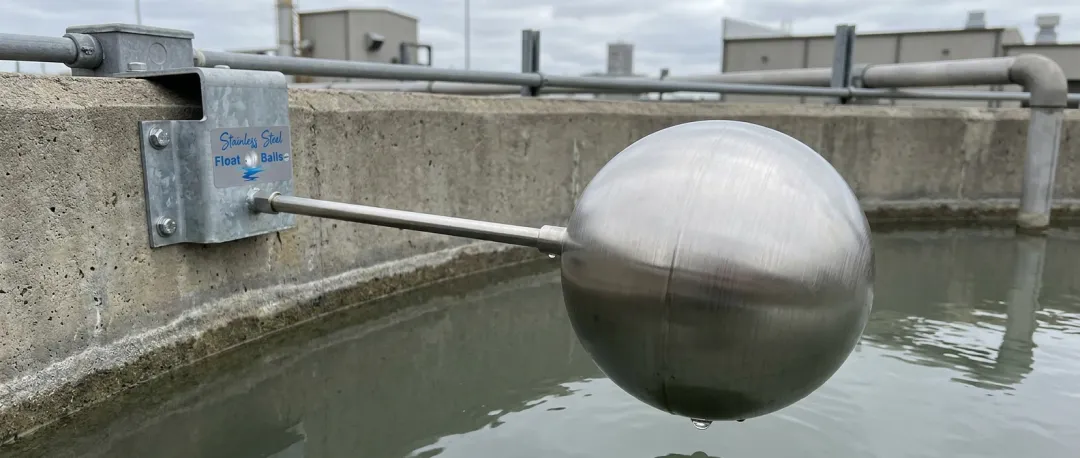

Stainless steel float balls are widely used in food processing for monitoring oils and syrups in tanks, chemical manufacturing for corrosive liquid monitoring, wastewater treatment for accurate level detection, industrial settings for steam traps and sump pumps, and vacuum tank operations. Their durability and customizability make them suitable for virtually any liquid level sensing or control application.
