Magnetic Float Level Switches for Liquids

A ball valve is a manually or actuator-operated shut-off device that controls flow through a quarter-turn mechanism. A float switch, by contrast, automatically responds to liquid level changes using buoyancy. Float switches trigger electrical signals or mechanically actuate valves, making them ideal for automated level control and monitoring applications.

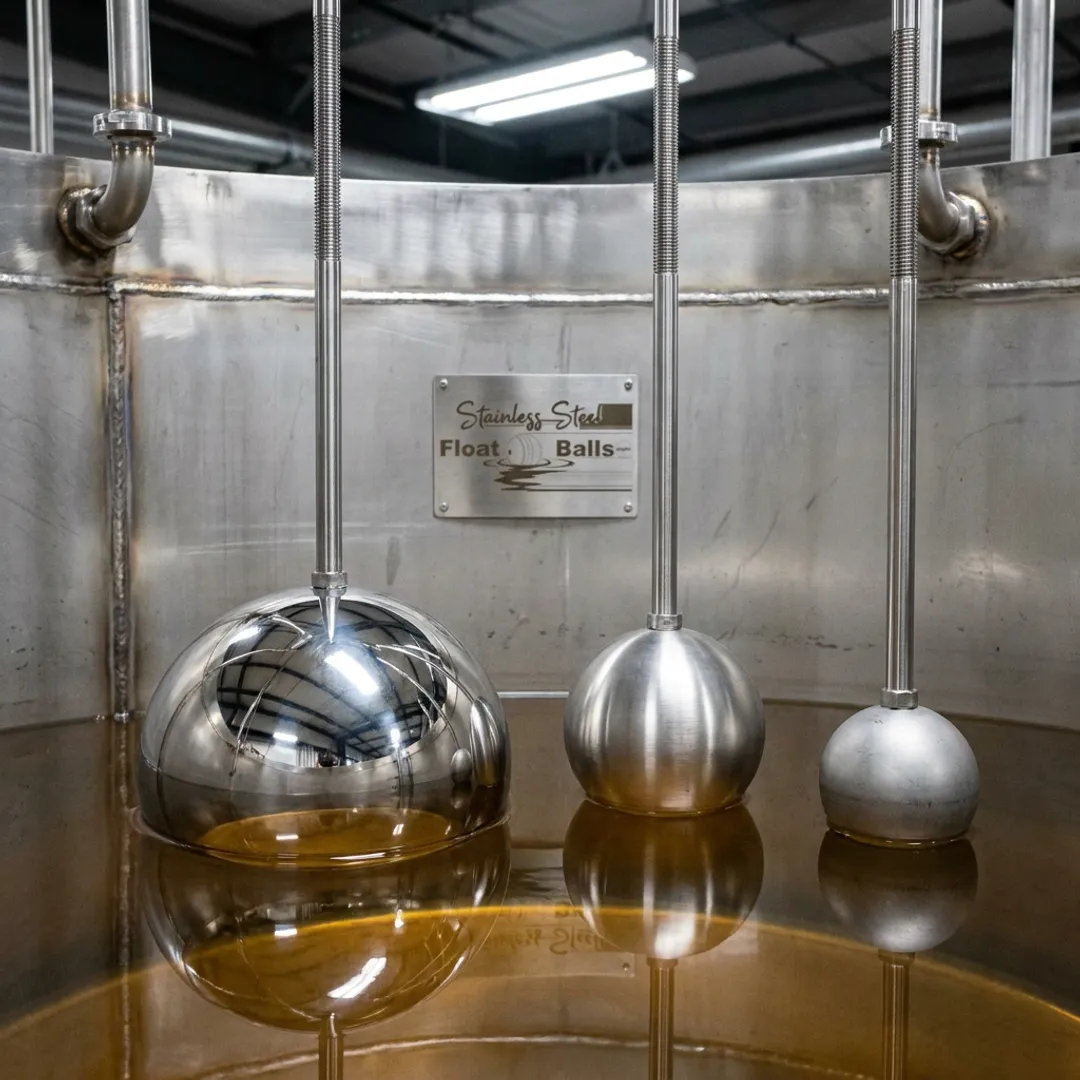

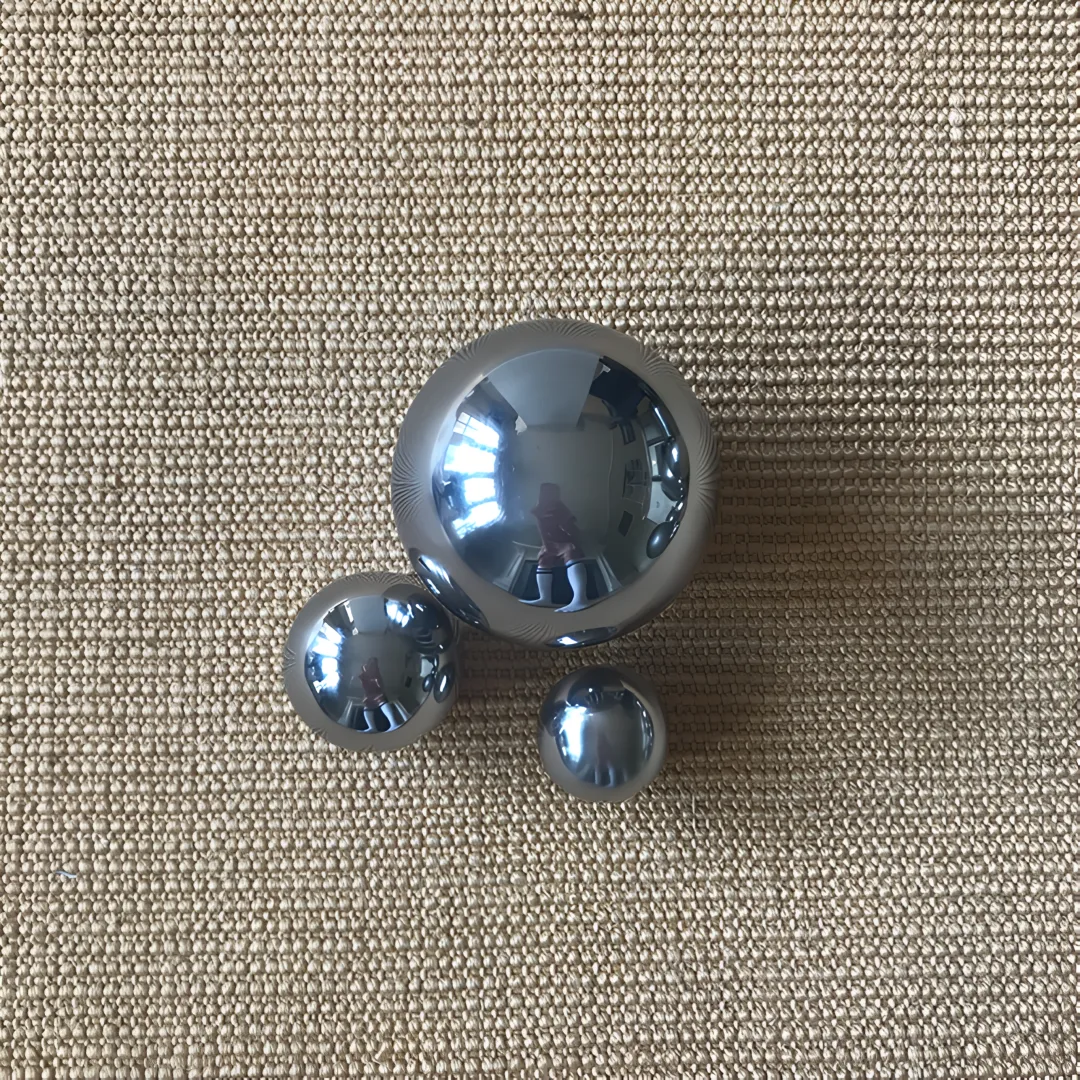

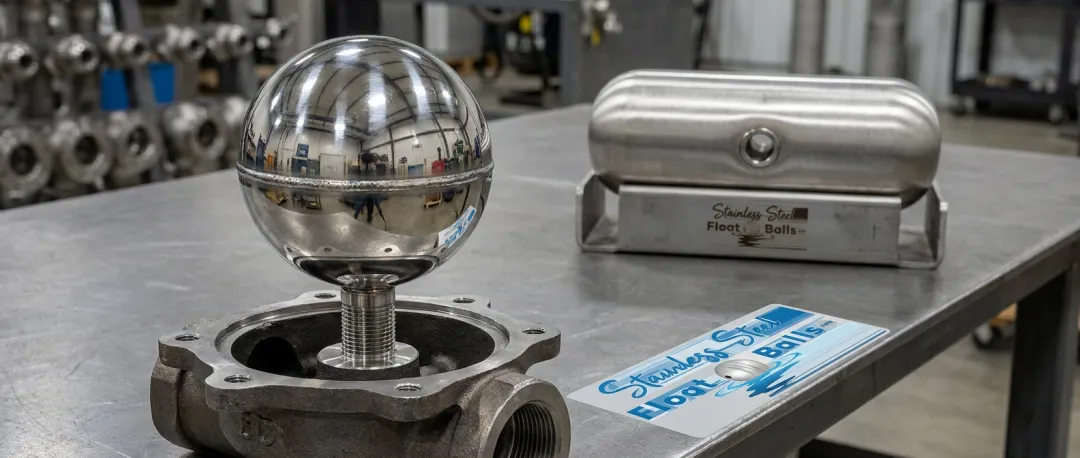

A ball float is a hollow, sealed sphere — typically made from stainless steel or plastic — designed to buoy on the surface of a liquid. As liquid levels rise or fall, the float moves accordingly, actuating connected switches, valves, or sensors. Stainless steel ball floats are preferred in industrial, chemical, and food processing environments for superior corrosion resistance.

The two main types are mechanical float switches, which use physical movement to open or close an electrical circuit, and magnetic float switches, which use a magnet inside the float to actuate a hermetically sealed reed switch. Magnetic types are preferred in hazardous or corrosive environments because no direct electrical contact with the liquid occurs.

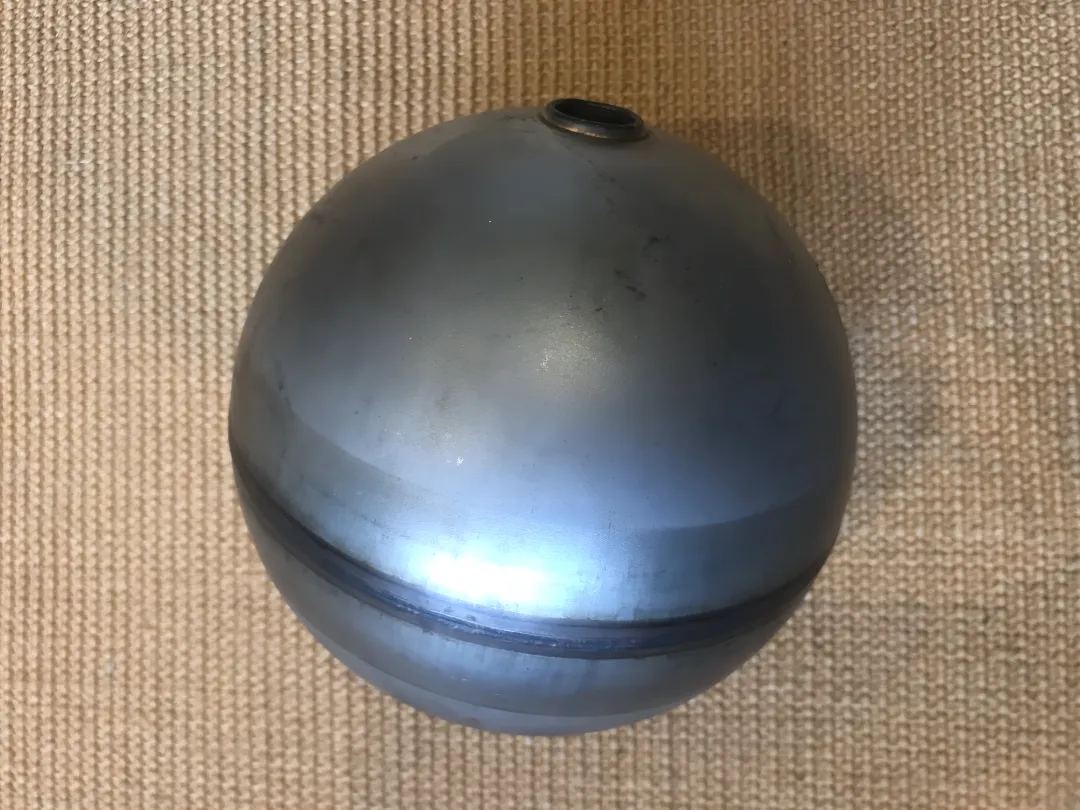

Our magnetic float balls are manufactured from 304 stainless steel and 316 stainless steel. 304ss is suitable for most industrial and food processing applications, while 316ss offers enhanced corrosion resistance for aggressive chemicals and harsh wastewater environments. Other materials are available upon request for specialized applications.

Yes. We offer full thread and fitting customization including common sizes such as 1/4-20, 3/8-16, 1/4 NPT, 3/8 NPT, 1/2 NPT, and 3/4 NPT. Through-tube compatibility is also available to fit 3/8", 1/2", 5/8", and 3/4" rods, ensuring compatibility with virtually any measurement or control system.

Yes. We have dedicated pressure testing equipment to test float balls to custom specifications before shipment. This ensures every float performs reliably in high-pressure industrial environments such as steam traps, vacuum tanks, and chemical processing systems, giving buyers confidence in the product's integrity.
