Reliable Float Control Valves Components

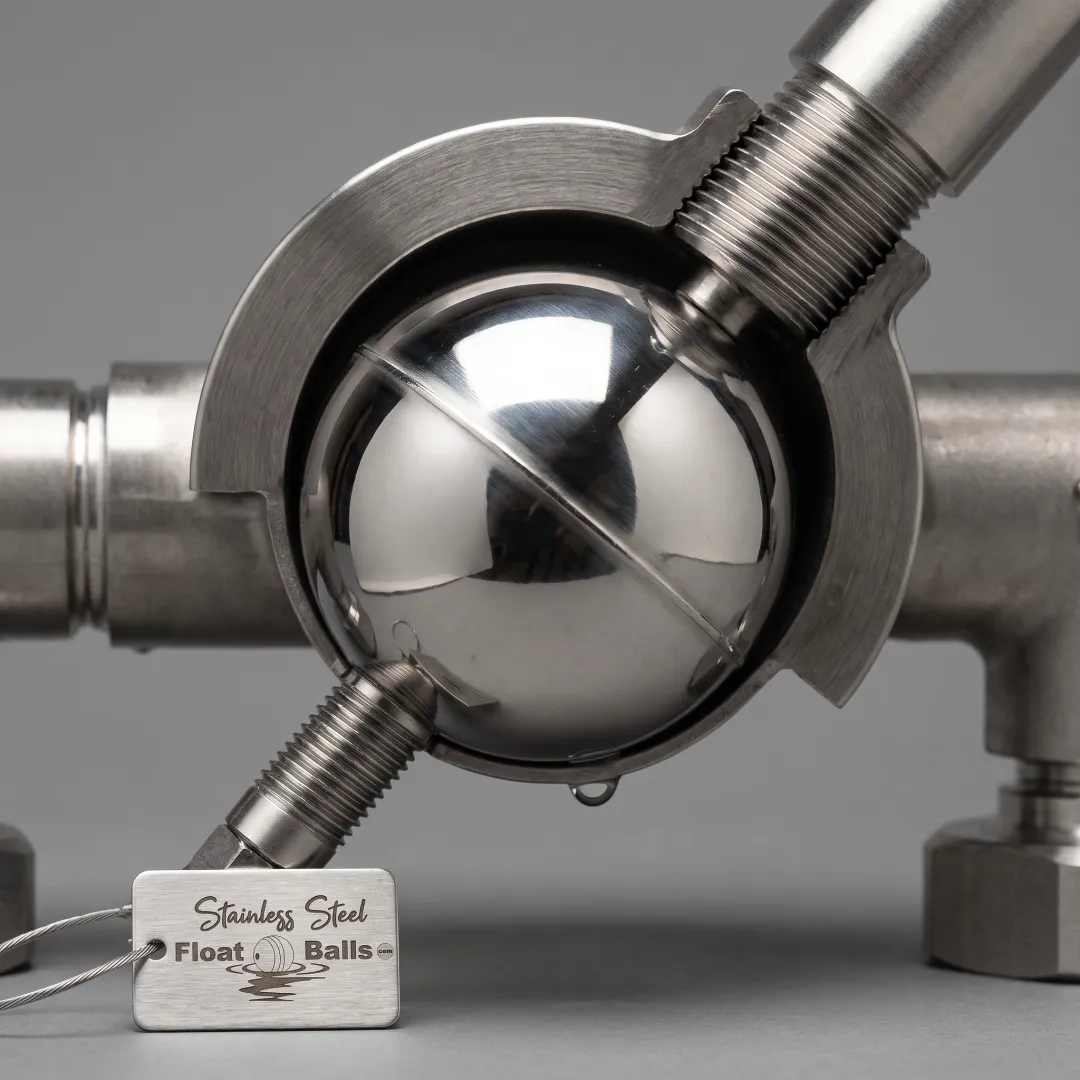

A float valve automatically controls liquid flow according to the level in a tank, vessel, or chamber. As the liquid level rises or falls, the float moves and actuates the valve mechanism to open, close, or modulate flow. This helps prevent overfilling, maintain a desired level, and reduce the need for manual monitoring in industrial liquid-handling systems.

Three broad control-valve types are commonly categorized by their motion and flow path: linear-motion valves, rotary-motion valves, and self-actuated valves. Globe and diaphragm valves are typical linear designs, while ball, butterfly, and plug valves are rotary designs. Float valves are self-actuated level-control devices, using float movement to respond to changing liquid levels without a separate powered actuator.

Float balls can be made from several materials, but stainless steel is widely used where durability, corrosion resistance, and dependable performance are important. Stainless Steel Float Ball Company most commonly supplies 304 stainless steel and 316 stainless steel floats, with other materials available when required. Material selection should account for the liquid, temperature, pressure, chemical exposure, and operating environment.

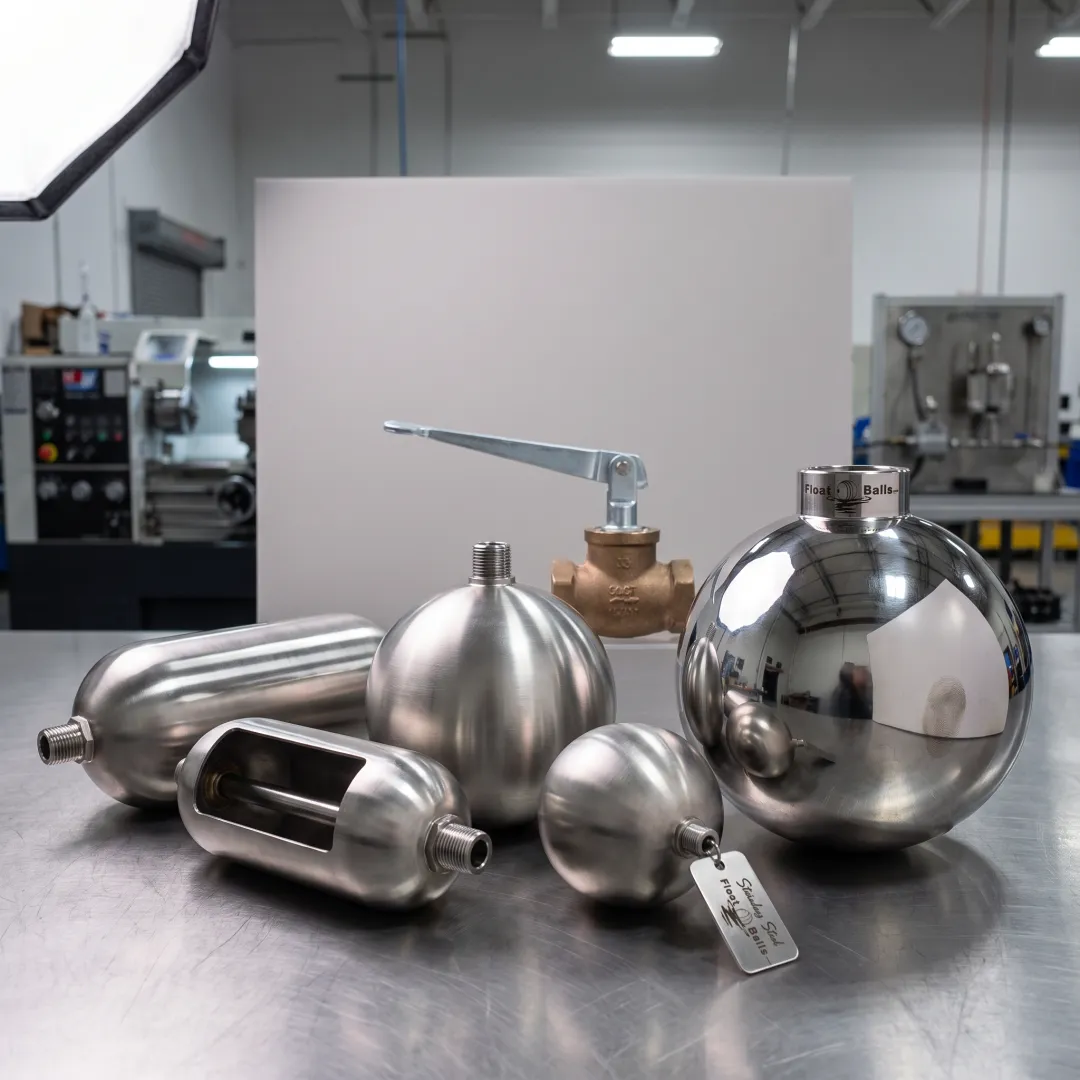

Yes. Float balls can be customized in round or oblong shapes with specified sizes, finishes, threads, through tubes, hooks, fittings, and internal magnets. Common finishing options include matte, brushed, and fully polished surfaces. Providing the valve design, connection requirements, pressure conditions, and intended liquid application helps determine a float configuration that integrates correctly with your existing system.

Pressure testing helps confirm that a sealed float can withstand the operating pressure required by its intended system. This is particularly important when a float will be exposed to elevated pressure, vacuum-related conditions, or demanding industrial liquids. Stainless Steel Float Ball Company can test floats to customer specifications when higher-than-normal pressure requirements apply, supporting reliable component selection before installation.

Both 304 and 316 stainless steel offer strong corrosion resistance and durability, but 316 generally provides additional resistance in more corrosive environments because of its molybdenum content. The right selection depends on the liquid being controlled, chemical exposure, temperature, and service conditions. Reviewing the application requirements before ordering helps ensure the float material supports long-term performance.

Yes. Magnets can be sourced and assembled inside float balls when an application requires magnetic level detection, switching, or actuation. Internal magnet installation can support more precise sensing in complex systems while keeping the component integrated within the float design. Share the required magnetic function, float size, pressure conditions, and connection details to guide the appropriate configuration.

A tailored supply program can be structured around your inventory objectives, anticipated usage, and freight considerations. This approach helps manufacturers maintain access to recurring float sizes or custom configurations while managing carrying costs. Stainless Steel Float Ball Company offers flexible supply planning, a large inventory of common sizes, and direct worldwide shipping to support consistent procurement for ongoing production.
