Float Level Indicators for Visual Tank Readings

A float level sensor works by attaching a buoyant float to a rod, through tube, or fitting. As liquid rises or falls, the float moves correspondingly. This movement can trigger magnetic switches, actuate float valves, or provide a visual indication of level. Stainless steel floats with integrated magnets are commonly used for contactless switch activation in sealed or pressurized systems.

A float-based water level indicator is a system where a buoyant float tracks the surface of a liquid inside a tank or vessel. As the water level changes, the float rises or falls, transmitting that movement through rods, tubes, or magnetic mechanisms to gauges, switches, or valves that display or respond to the current level accurately.

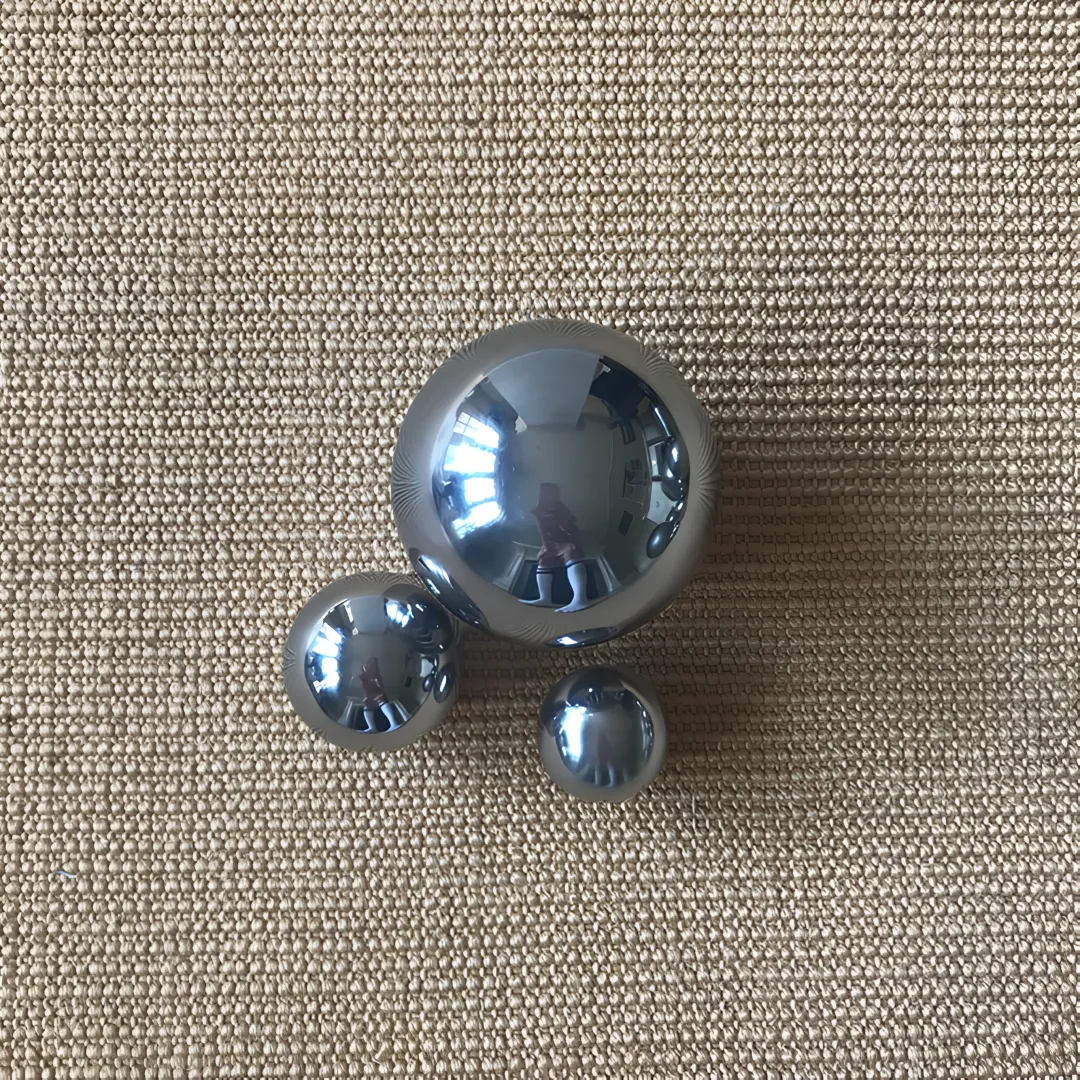

Stainless steel float balls are most commonly manufactured from 304 stainless steel, which suits the majority of industrial applications. For more corrosive environments such as chemical processing or wastewater treatment, 316 stainless steel is recommended due to its superior corrosion resistance. Both grades are available in matte, brushed, or fully polished mirror finishes depending on application requirements.

Yes, float balls can be fully customized with a wide range of thread specifications including 1/4-20, 3/8 NPT, 1/2 NPT, 3/4 NPT, and more. Through tubes compatible with 3/8" to 3/4" rods are also available. Custom magnets, hooks, and specialty fittings can be assembled inside or onto the float ball to integrate seamlessly with existing level measurement or control systems.

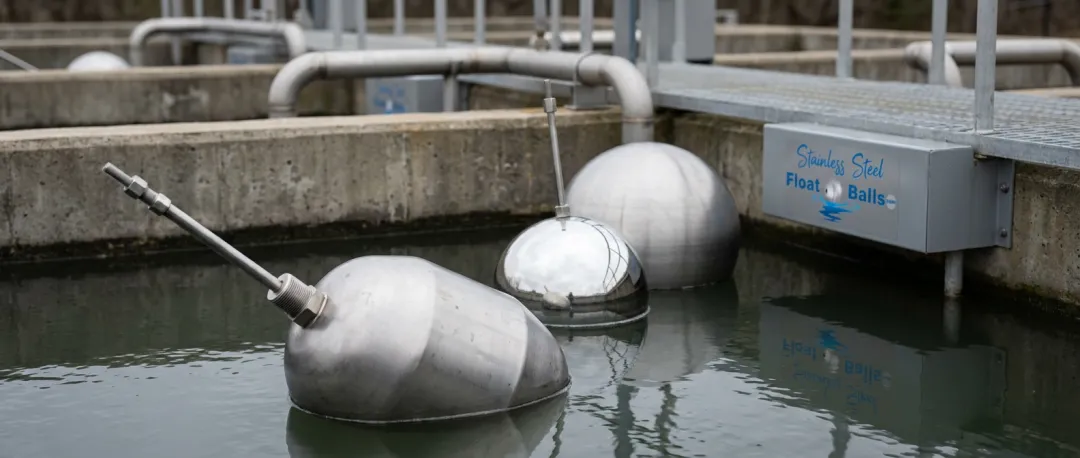

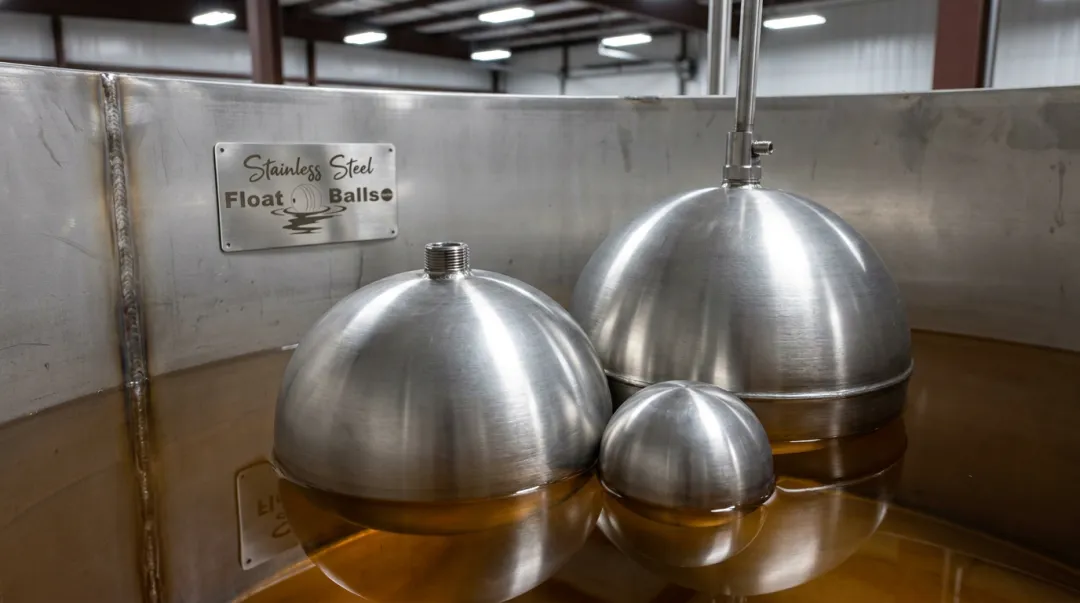

Stainless steel float balls are used across food processing for monitoring oils and syrups in tanks, chemical manufacturing for tracking corrosive liquids, wastewater treatment for level monitoring in treatment tanks, steam trap systems, sump pump activation, and vacuum tank shutoff applications. Their corrosion resistance and customizability make them suitable for virtually any liquid-handling industry.

Yes, pressure testing equipment is available to test float balls to custom specifications before shipment. This ensures each float meets the exact pressure requirements of the intended application, whether for high-pressure industrial systems, steam traps, or vacuum tanks. Pressure testing can be arranged as part of the custom design and fabrication process by contacting the manufacturer directly.
