Float Level Switches for Tanks & Sumps

A float switch is used to automatically monitor and control liquid levels in tanks, sumps, and process vessels. It triggers actions such as activating or deactivating pumps, opening or closing valves, or sending alerts when liquid reaches a high or low threshold. Common applications include sump pump activation, vacuum tank shutoff, and wastewater level management.

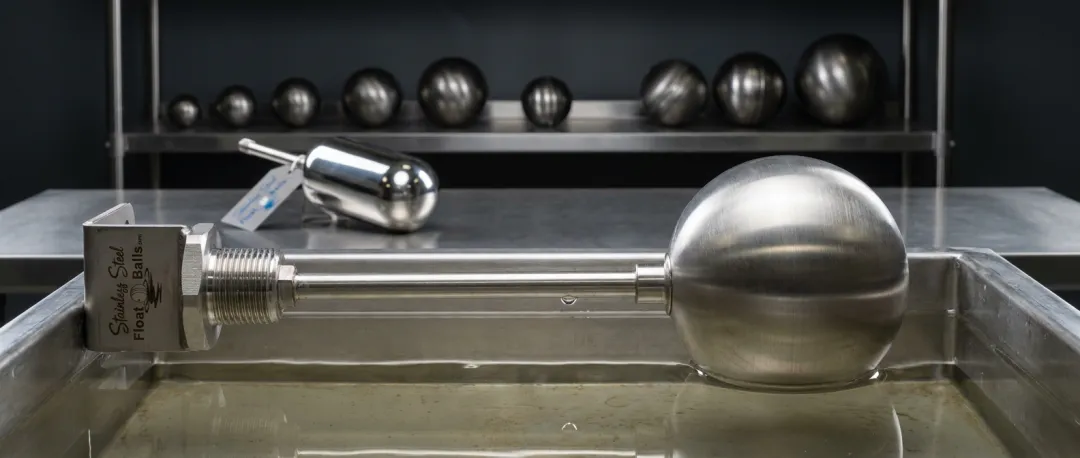

A float level switch operates on the principle of buoyancy. The float, typically a hollow stainless steel ball or oblong shape, sits on the liquid surface and moves vertically as the liquid level changes. This movement is transmitted via a rod, through tube, or magnetic mechanism to trigger a switch contact or valve at a predetermined level setpoint.

To test a float level switch, manually lift or lower the float by hand to simulate rising and falling liquid levels. Verify that the connected switch, pump, or valve activates at the correct setpoint. For pressure-critical applications, use pressure testing equipment to confirm the float's integrity under operating conditions. Always isolate the system before testing.

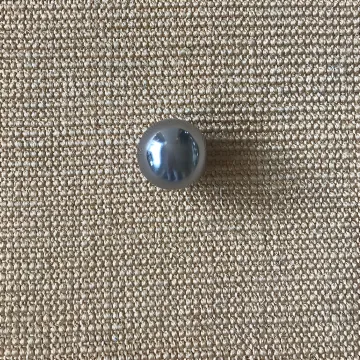

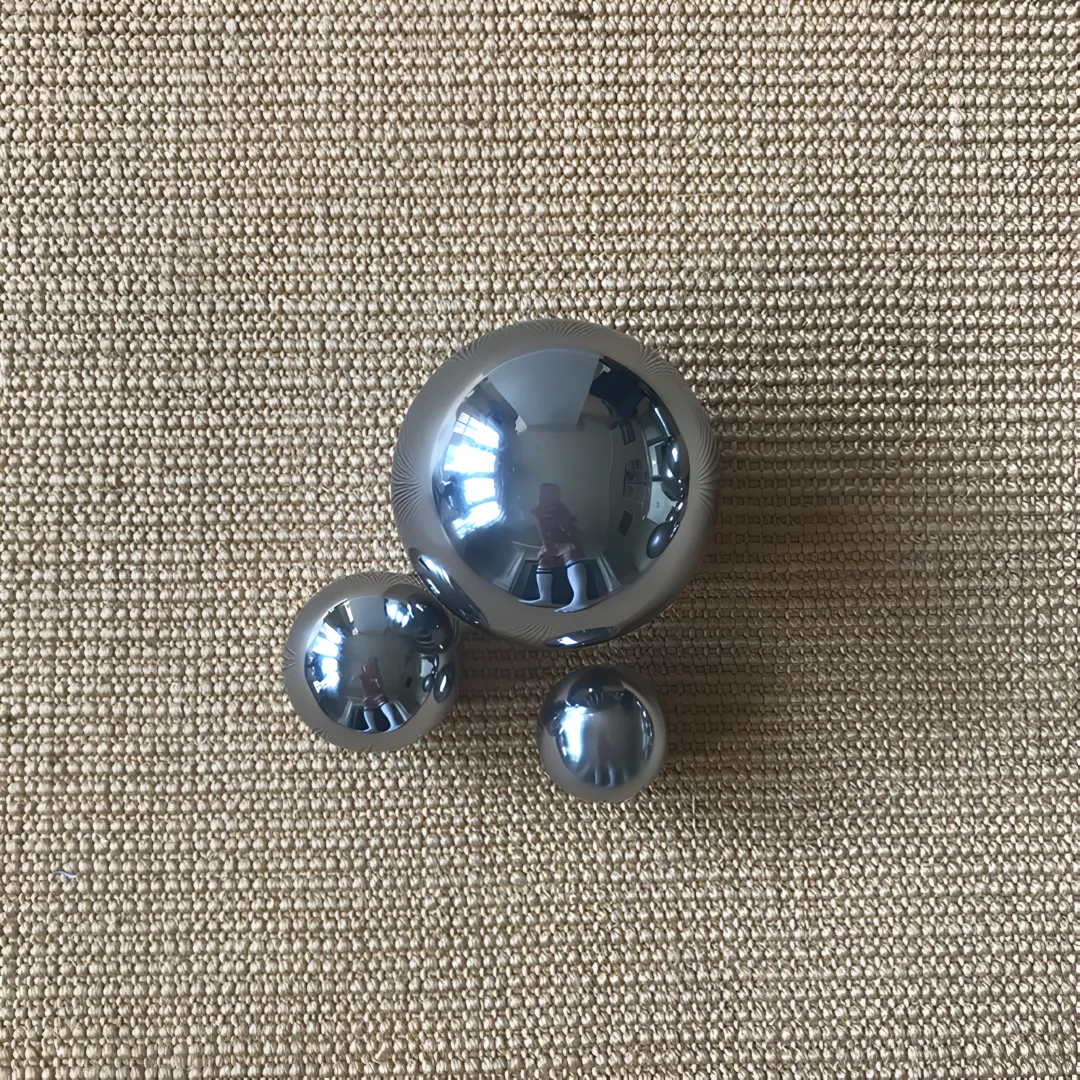

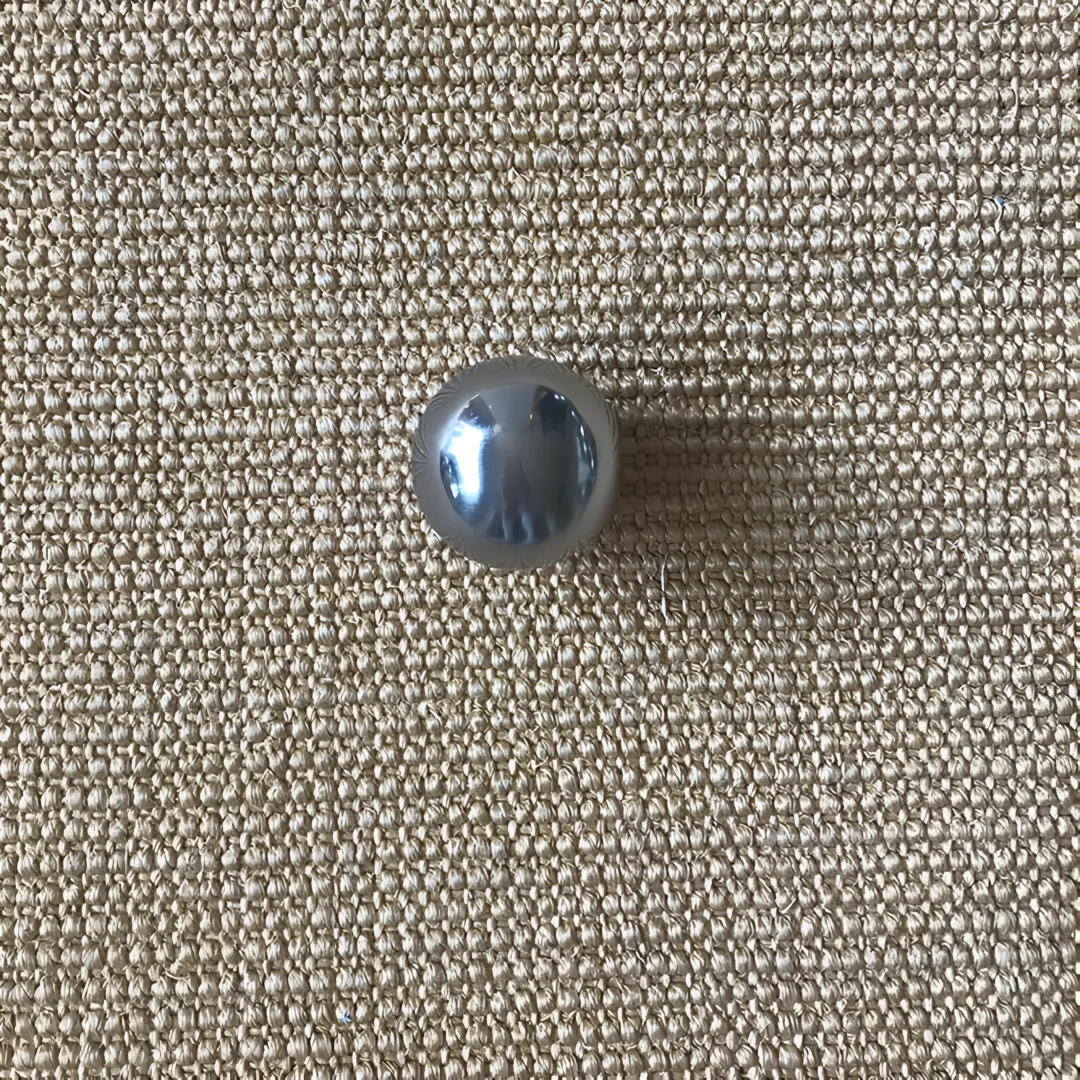

Float balls are available in 304 stainless steel, which is the most common choice for general industrial use, and 316 stainless steel for applications involving corrosive chemicals or harsh environments. Both grades are offered in matte, brushed, and fully polished mirror finishes. Other materials can be sourced upon request for specialized applications.

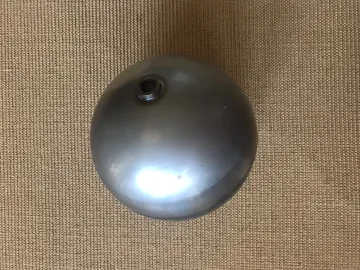

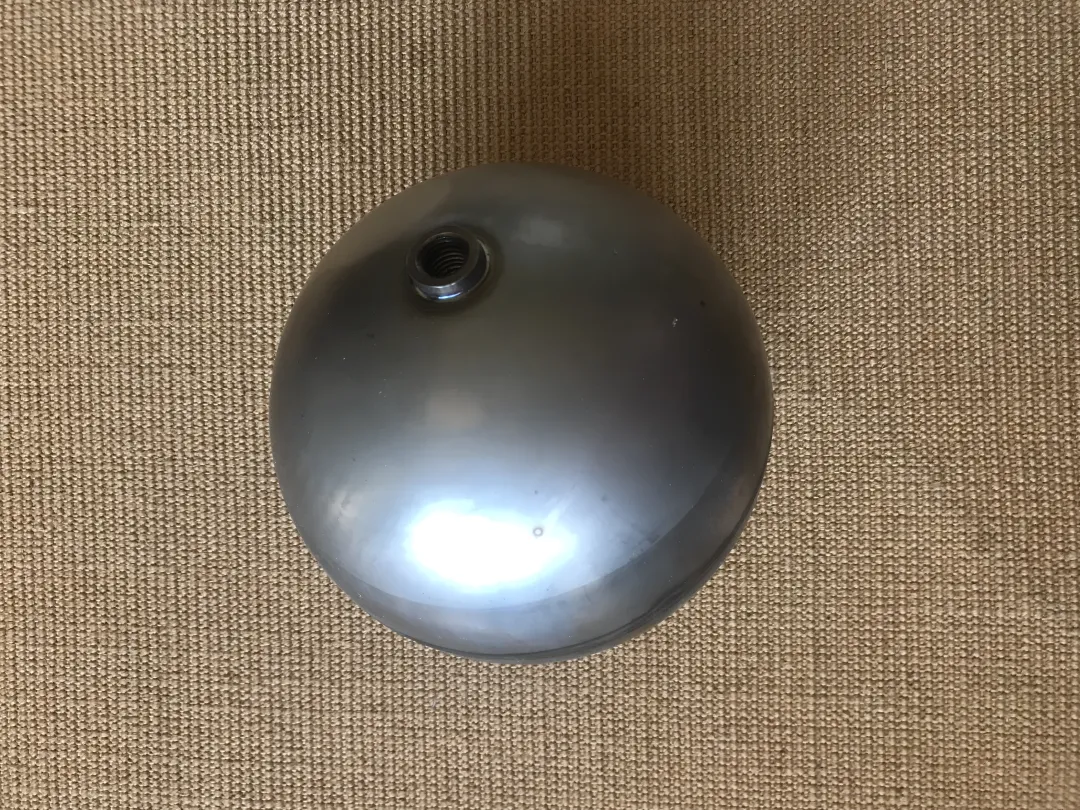

Yes. Float balls can be fitted with any custom thread specification, including 1/4-20, 3/8 NPT, 1/2 NPT, and 3/4 NPT, as well as through tubes, hooks, and custom fittings. Magnets can also be assembled inside the float ball for use in magnetic level detection systems, providing precise and reliable level sensing in complex industrial setups.

Round float balls are available in diameters from 1-1/2" up to 14". Oblong floats range from 2x6" to 9x14" and larger, with various thread and fitting options. Custom sizes can be added to inventory to meet specific system requirements. Contact the team directly to discuss sizing, shape, and configuration options for your application.
