Options

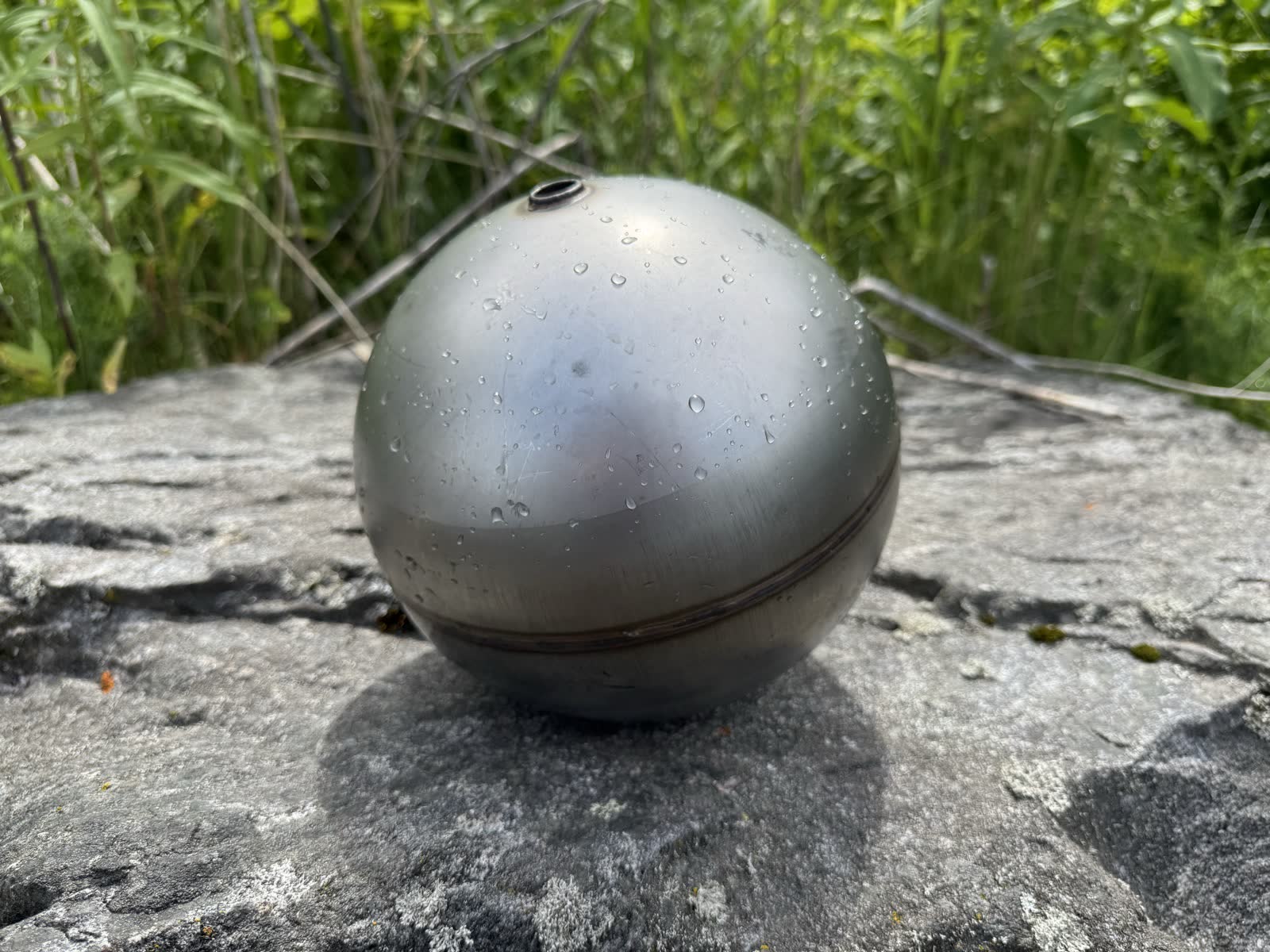

Float Balls with Through Tubes
Through-tube fittings let the float slide onto, and be welded or fixed on, a rod. Stock combinations cover ⅜″ through ¾″ rods on 5″ through 12″ balls; custom combinations are built to spec.
Ships worldwide · most stock orders leave same day
Features & specs
What's in this product line
Through-tube fittings let the float slide onto, and be welded or fixed on, a rod. Stock combinations cover ⅜″ through ¾″ rods on 5″ through 12″ balls; custom combinations are built to spec.
Specifications
- 5″ ball — fits ⅜″ rod
- 6″ ball — fits ⅜″, ½″, ⅝″ rod
- 8″ ball — fits ½″, ⅝″, ¾″ rod
- 9″ ball — fits ¾″ rod
- 10″ and 12″ — fits ½″ rod
- Custom ball & rod combinations on request
Typical applications
Rod-mounted buoyancy
Level arms inside process vessels.
Mechanical level switches
Float rides a fixed rod.
Sight-glass replacements
Through-tube floats for visual indication.
Custom OEM
Builders' assemblies with custom rods.
Related products
In this family
Ready when you are
Send the spec — we'll quote it
Typical turnaround on quotes is one business day. Stock checks by phone are real-time.
